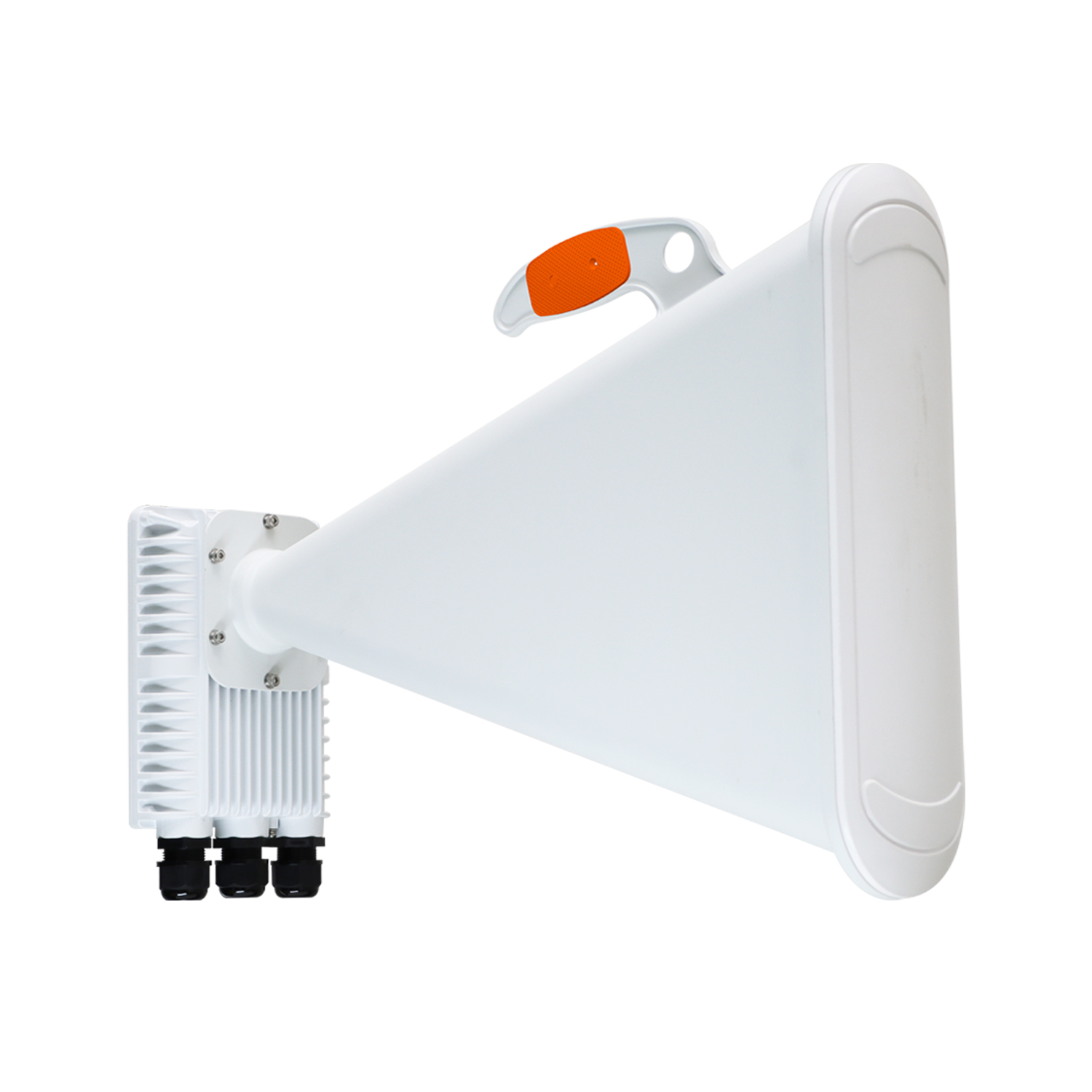

| Model | X5-H18 (AF) |
| CPU | Qualcomm Dual A53 @1.0 GHz |
| Operating Frequency | 5180-5825MHz (restricted by country of operation) |
| Wireless Standards | Wi-Fi 6 |
| Channel Width | 20MHz Spatial for Afghanistan |
| Proprietary Physical Layer | 2x2 |
| Networking interface | 1*2.5Gigabit Ethernet + 1*Gigabit |
| Transmit Power Range | Max 29dBm |
| Antenna Frequency Range | 5180-5825GHz |
| Antenna Gain | 18dBi Dual Linear |
| Azimuth Beam Width -6 db | 90° |
| Elevation Beam Width -6 db | 25° |
| Antenna Materials | Die-cast aluminum |
| RF connections | Internal |
| LEDs | 1*Power, 1*SYS, 1*Wi-Fi |
| Power Supply | PoE 22-56V, or DC 12V |
| Power Consumption | <16W |
| Surge suppression | 8KV |
| Weatherproof Enclosure | IP67 |
| Antenna Size | 50*34*10cm |
| Weight | 2kg |
| Temperature | -30°C to 60°C |
| Working mode | AP WDS、 Client WDS |
| Network Mode | Bridge/Router |
| Firewall | Port Forwarding ,DMZ,ACL Filtering |
| Wireless Security | WPA-PSK， WPA2-PSK,WPA/WPA2-PSK（AES/TKIP） |
| VLAN | 802.1Q |
| DHCP | DHCP Server、 DHCP Client |
| SNMP | √ |
| TR069 | √ |
| PoE | included |
