Product Overview

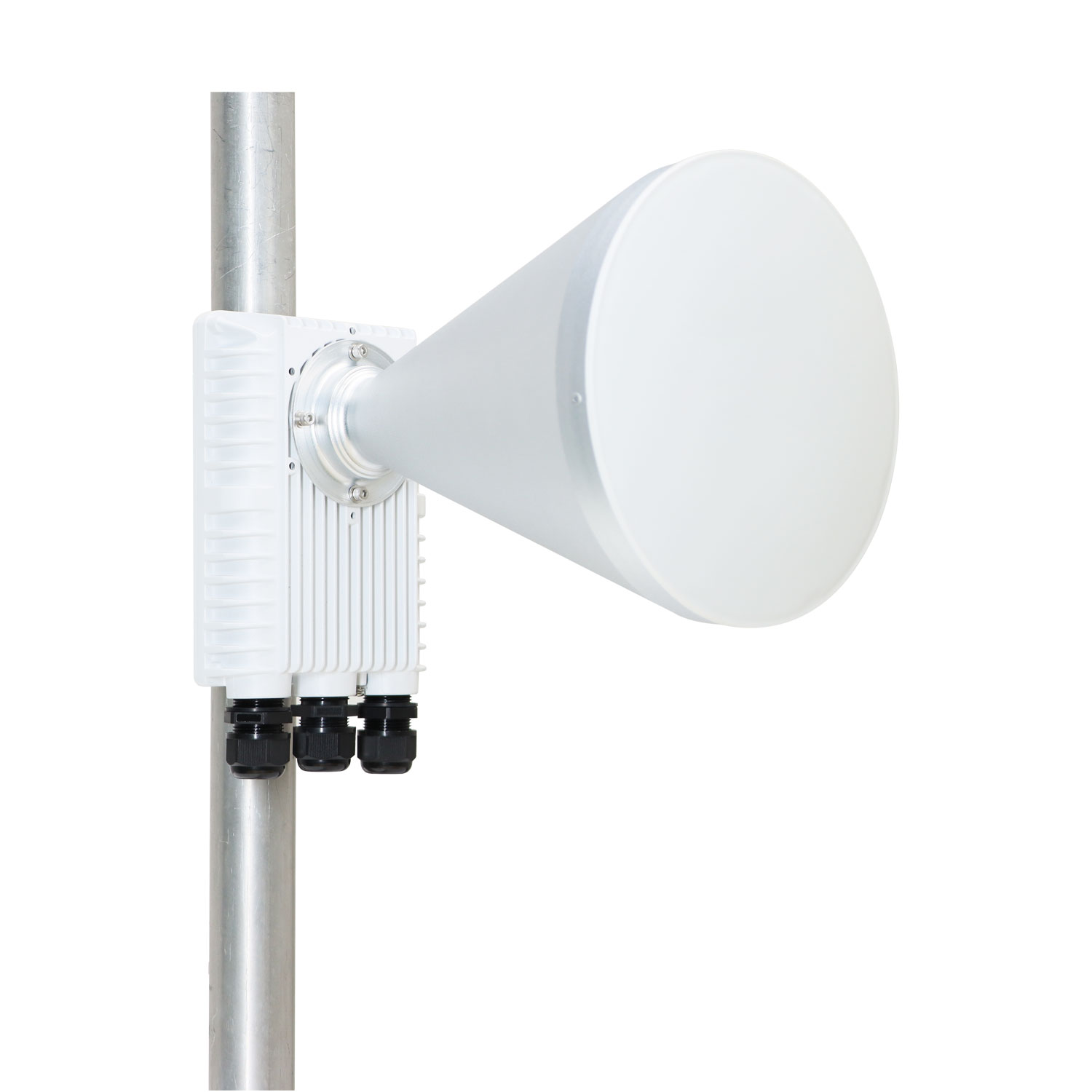

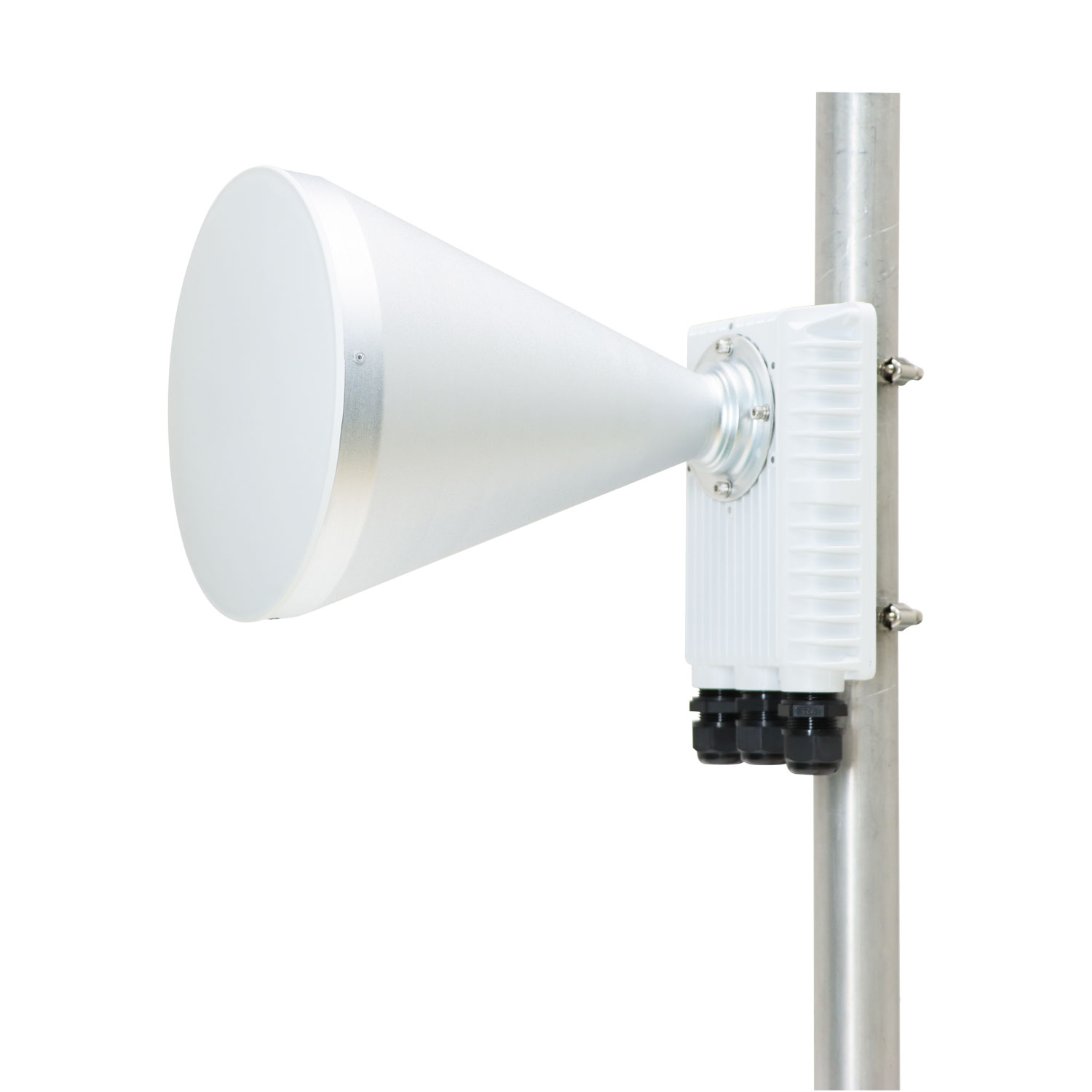

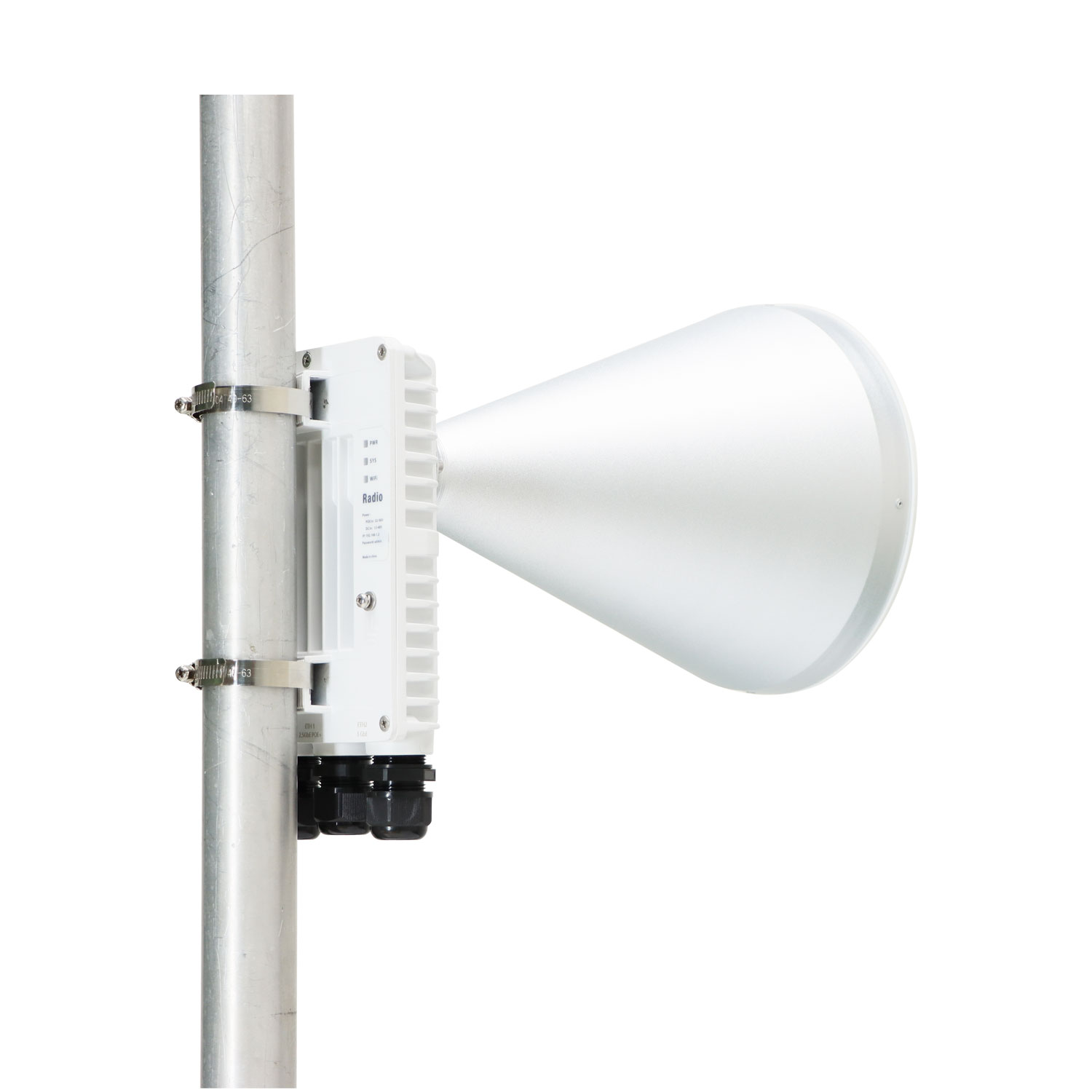

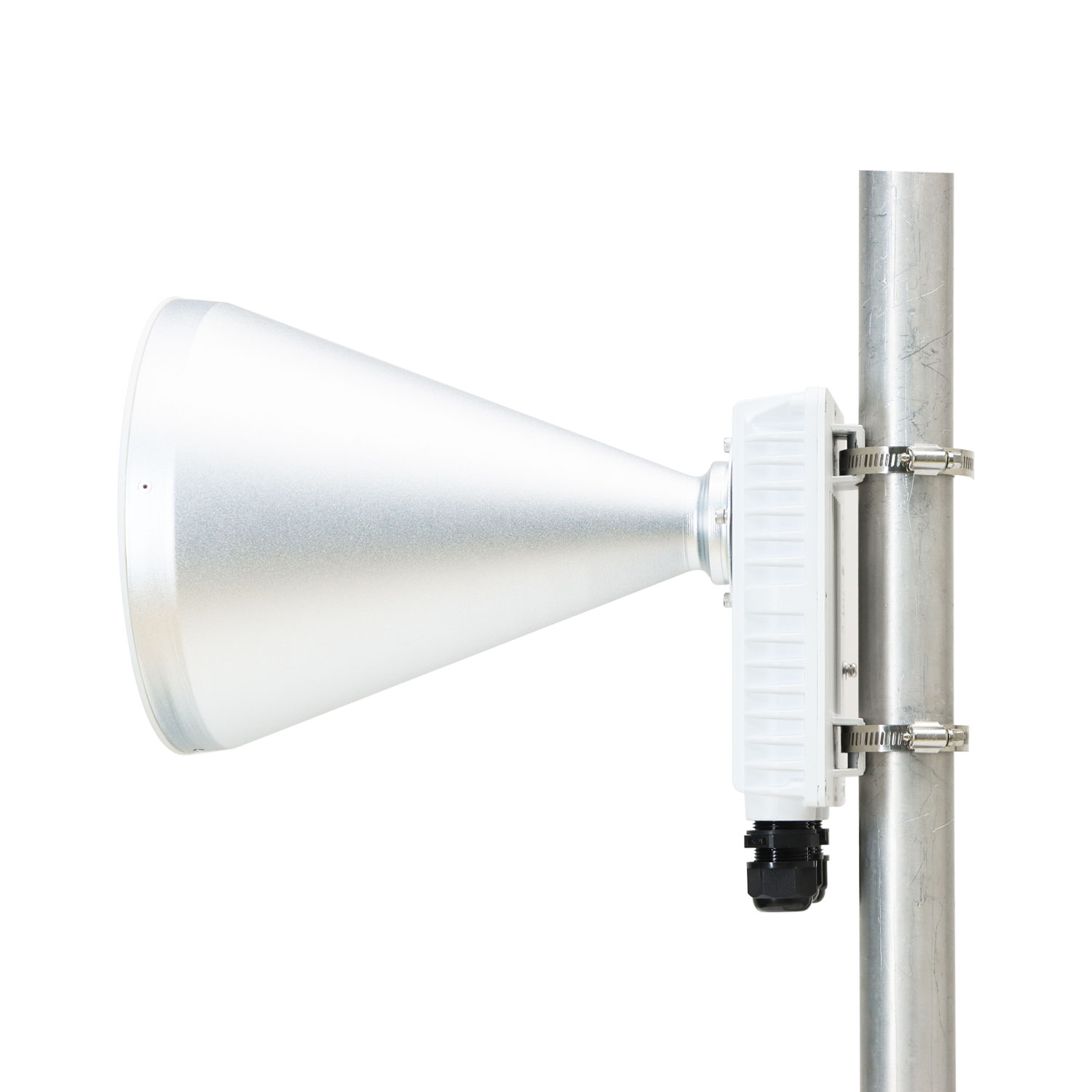

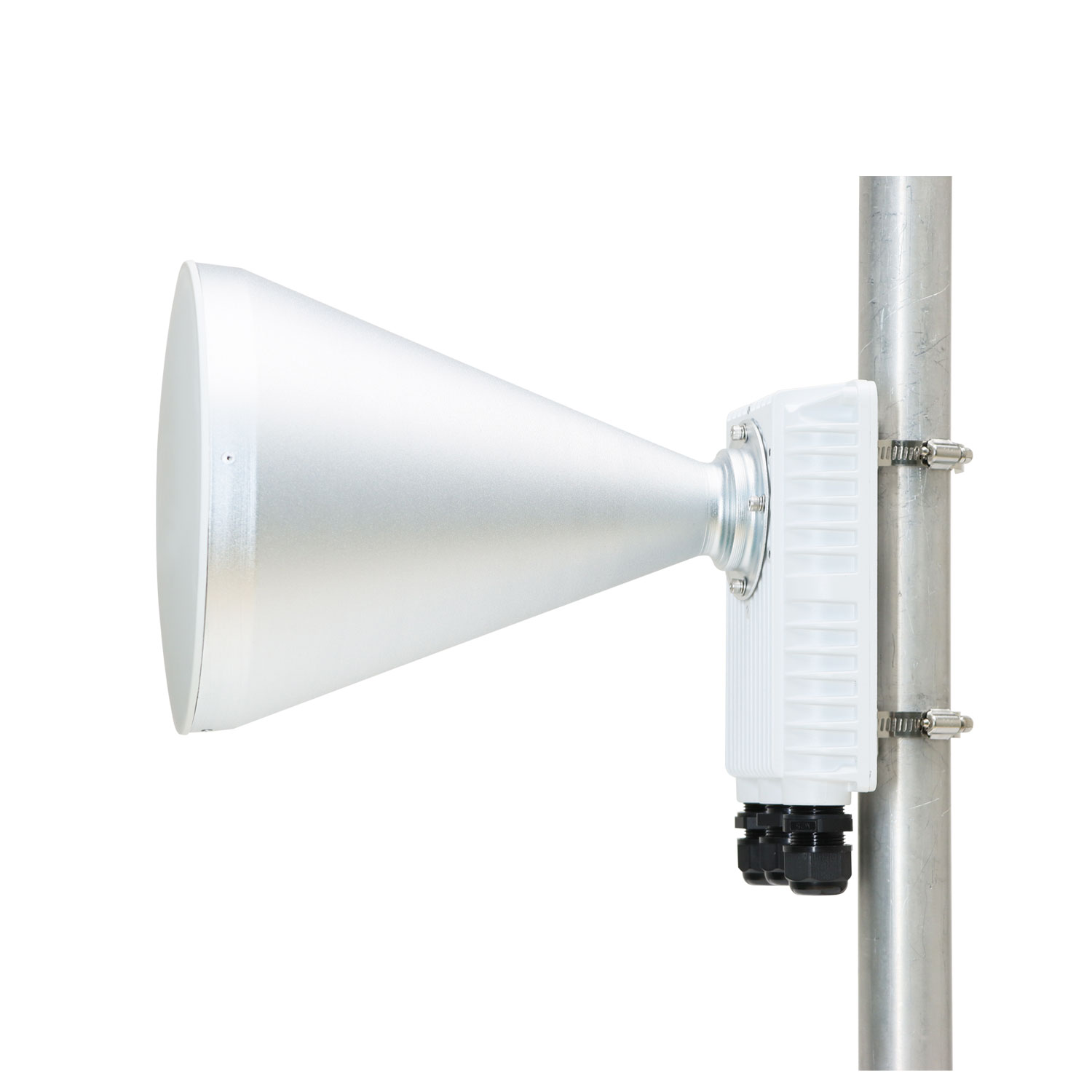

The kit with external 20dBi 30° isolation horn antenna. The tailored antenna radiation patterns spatially filters

both in-band and out-of-band spurious RF emissions to increase the noise immunity of the X6.

This feature is especially important in an increasingly congested RF environment.

Features

❄ Integrated 6GHz advanced filtering performance
❄ 1.7Gbps+ throughput
❄ 160 MHz Channel Width
❄ Supports both 802.3at PoE+ (PoE included) and DC power supply for flexible installations.
❄ 20dBi high-gain 2×2 Isolation Horn Antenna
❄ IP67 weatherproof

Model	X5-H20-1pk	X6-H20-1pk
CPU	Qualcomm Dual A53 @1.0 GHz
Operating Frequency	5180-5825MHz	5.925-7.125GHz
Wireless Standards	WIFI 6	WIFI 6e
Channel Width	20\|40\|80\|160 MHz
Proprietary Physical Layer	2x2MU-MIMO/OFDMA based on 802.11ax underlying technology
Networking interface	12.5Gigabit Ethernet + 1Gigabit
Transmit Power Range	Max 29dBm @20MHz , Max 27dBm@40/80MHz, Max26dBm@160MHz
Antenna Frequency Range	4.9-7.125GHz
Antenna Gain	20dBi Dual Linear
Antenna Beam width	E:30°/ H30°
LEDs	1Power, 1SYS, 1*Wi-Fi
Power Supply	PoE 22-56V, or DC 12V
Power Consumption	<15W
Surge suppression	8KV
Weatherproof Enclosure	IP67
Antenna Size	Φ21*30 cm
Weight	2kg
Temperature	-30°C to 60°C
Working mode	AP WDS、 Client WDS
Network Mode	Bridge/Router
Firewall	Port Forwarding ,DMZ,ACL Filtering
Wireless Security	WPA-PSK,WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE
VLAN	802.1Q with 802.1p priority
DHCP	DHCP Server、 DHCP Client
Network Management	HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069
QoS (Quality of Service)	Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MA C Address, broadcast, multicast, and station priority
ARQ	yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel	MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain)	MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel	MCS 0 = -92 dBm to MCS 11 (1024 QAM-5/6) = -61 dBm (per chain)	MCS 0 = -92 dBm to MCS 11 (1024 QAM-5/6) = -61 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel	MCS 0 = -89 dBm to MCS 11 (1024 QAM-5/6) = -58 dBm (per chain)	MCS 0 = -89 dBm to MCS 11 (1024 QAM-5/6) = -58 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @160 MHz Channel	MCS 0 = -86 dBm to MCS 11 (1024 QAM-5/6) = -55 dBm (per chain)	MCS 0 = -86 dBm to MCS 11 (1024 QAM-5/6) = -55 dBm (per chain)
Modulation Levels (Adaptive)	MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)	MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)

Package Size & Weight

LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
