Electrical
Model

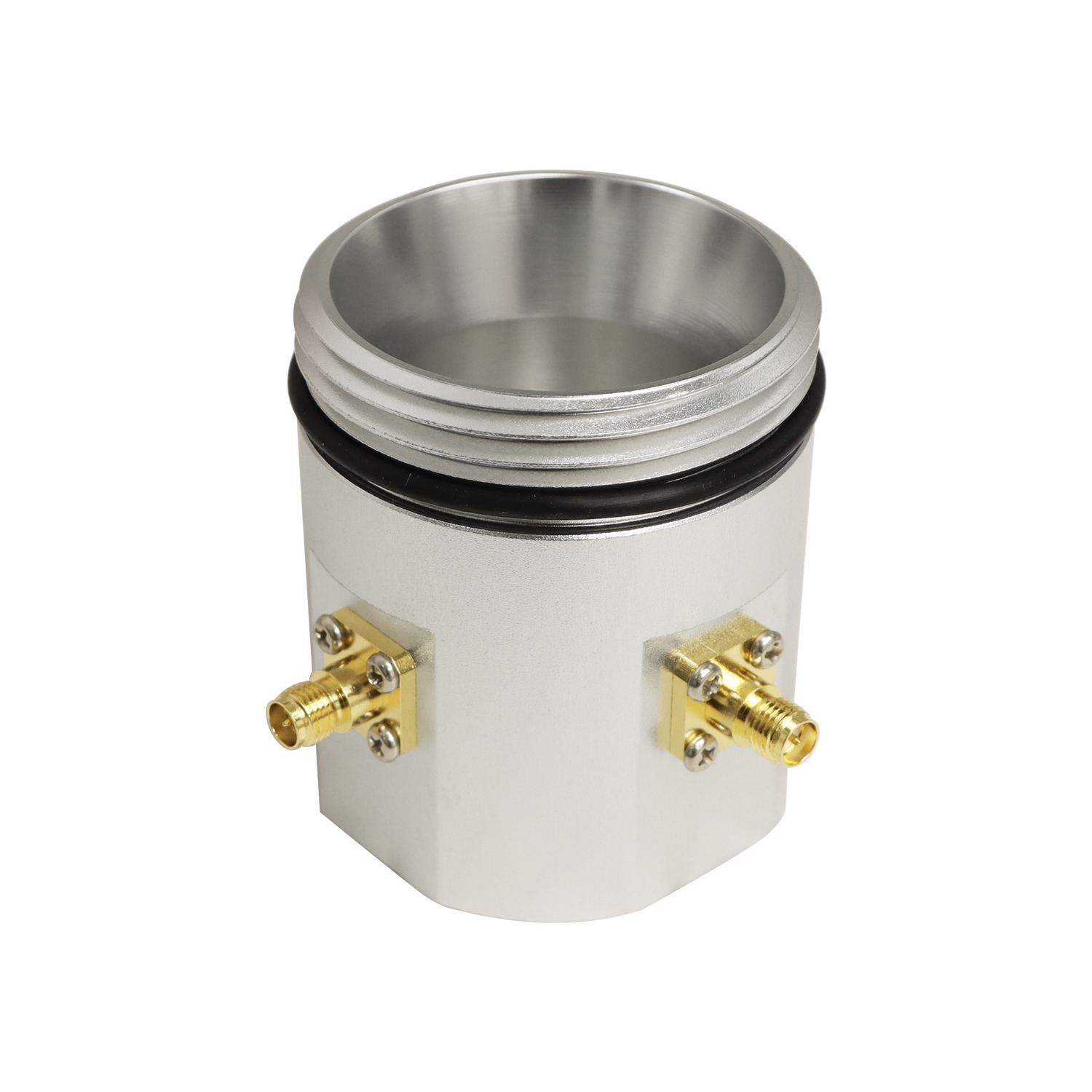

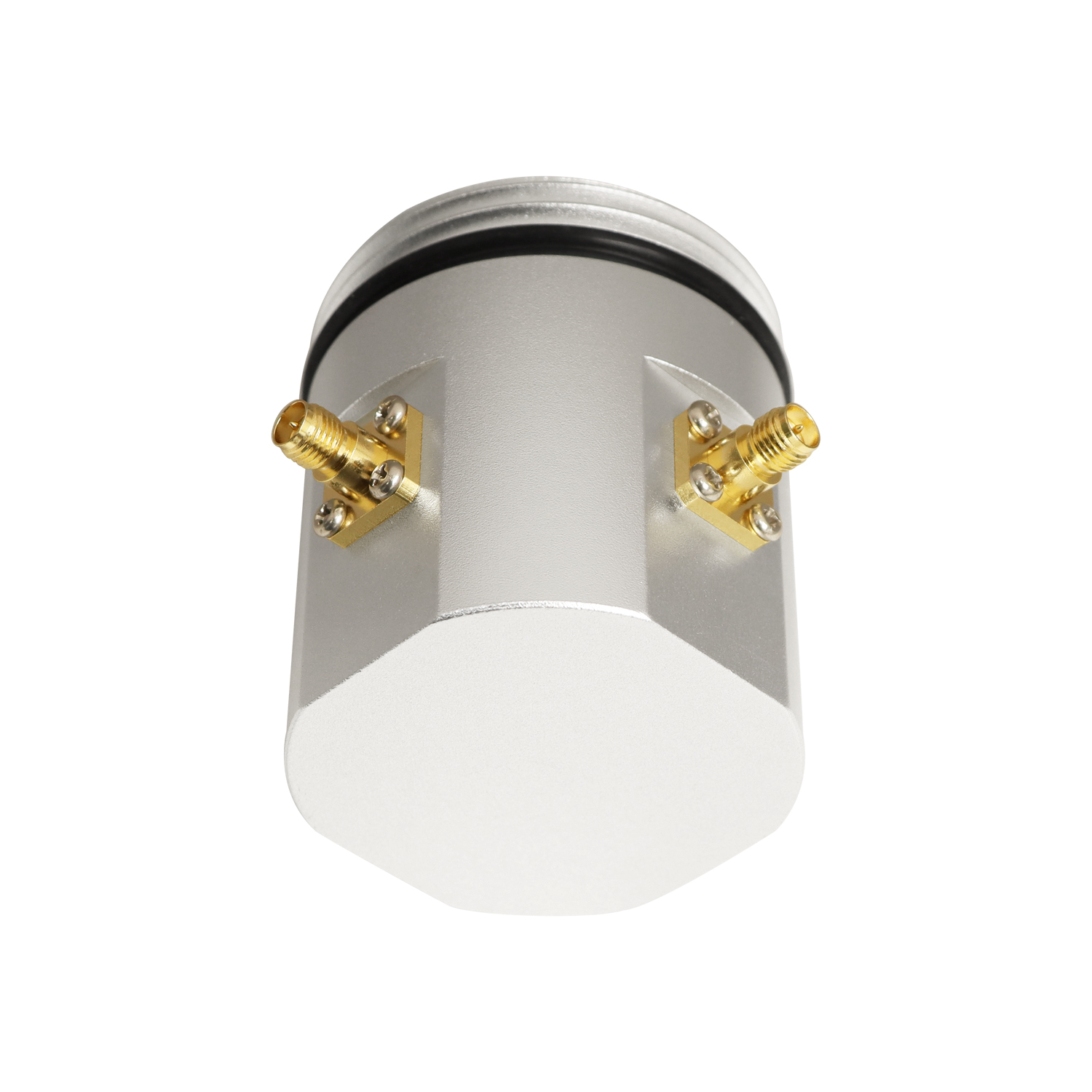

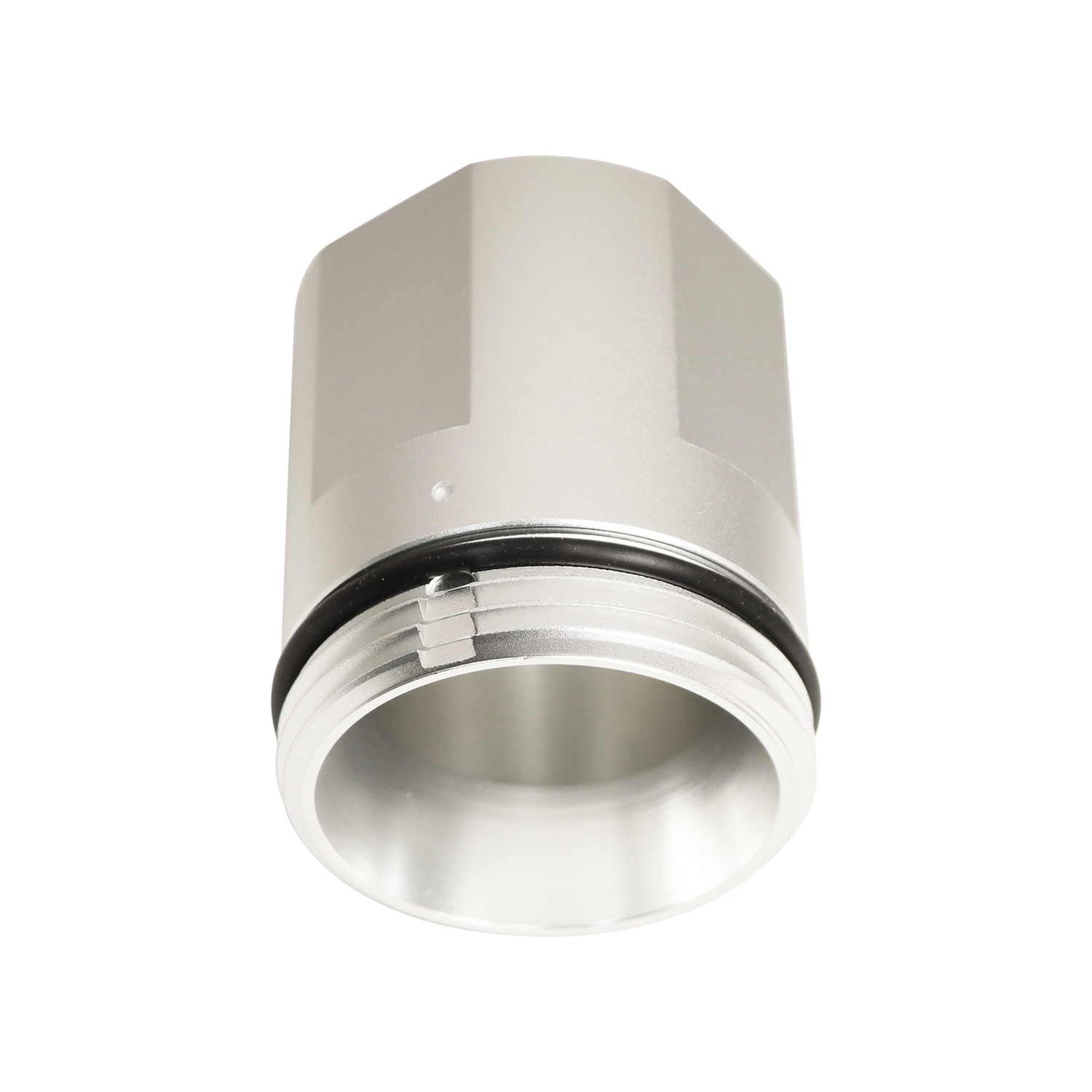

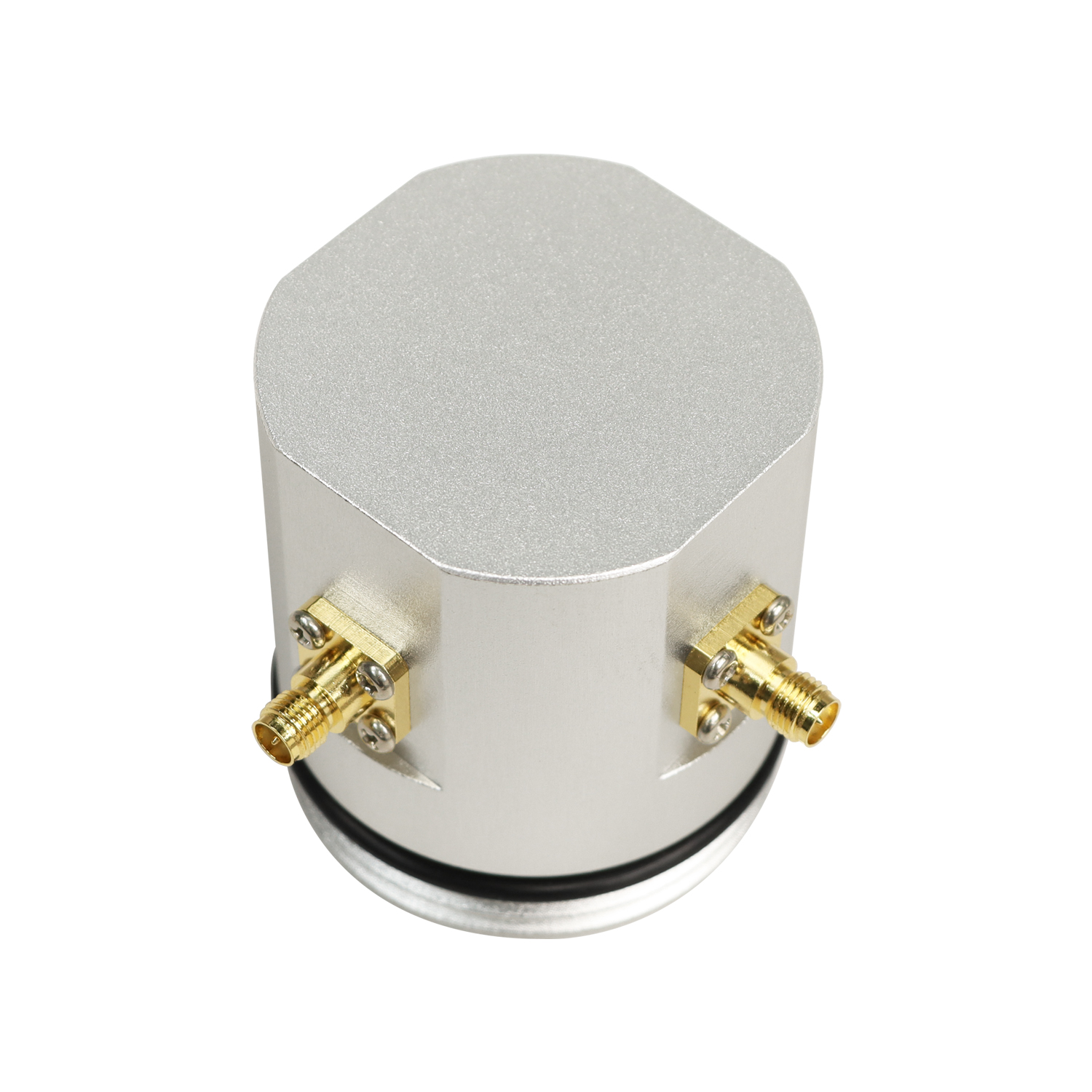

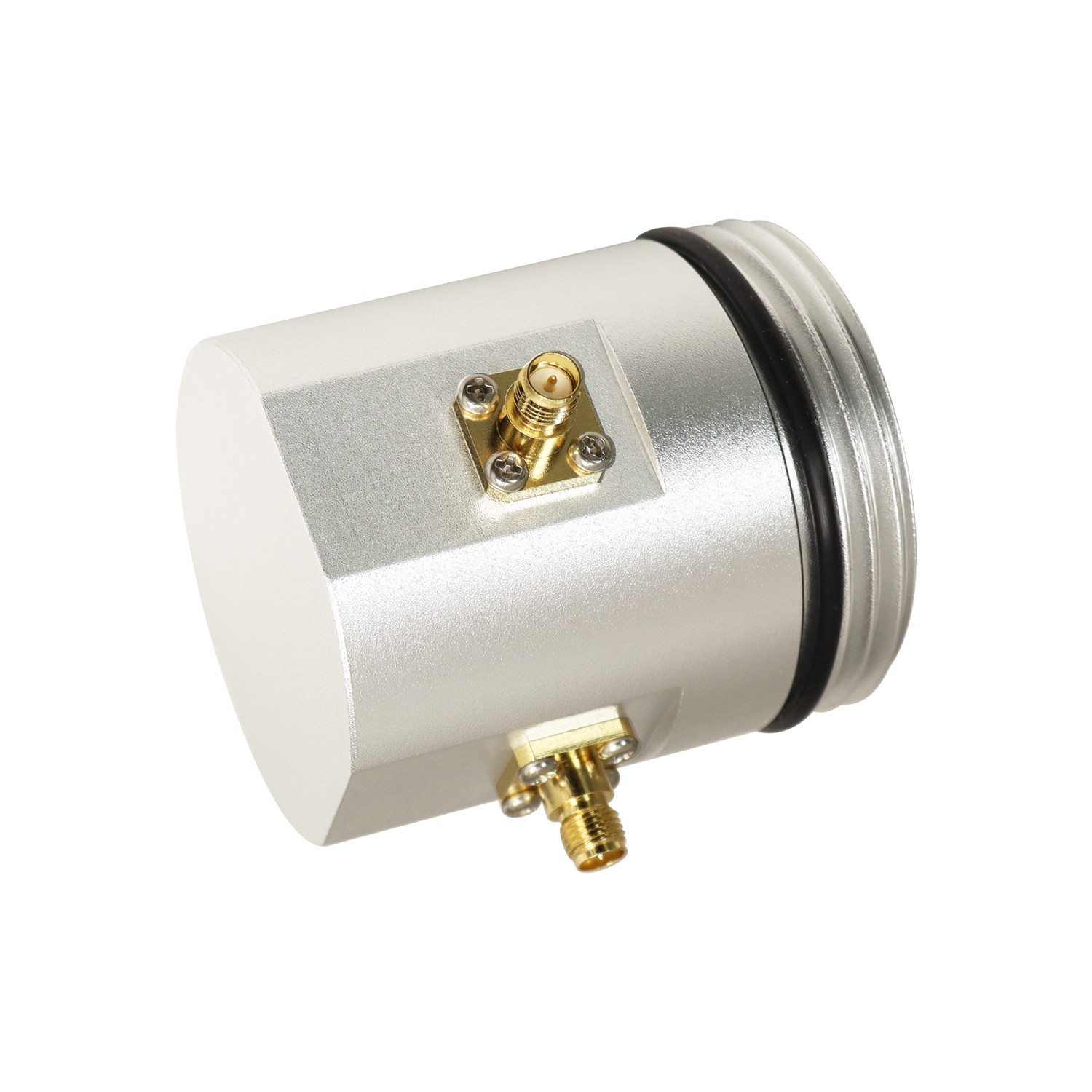

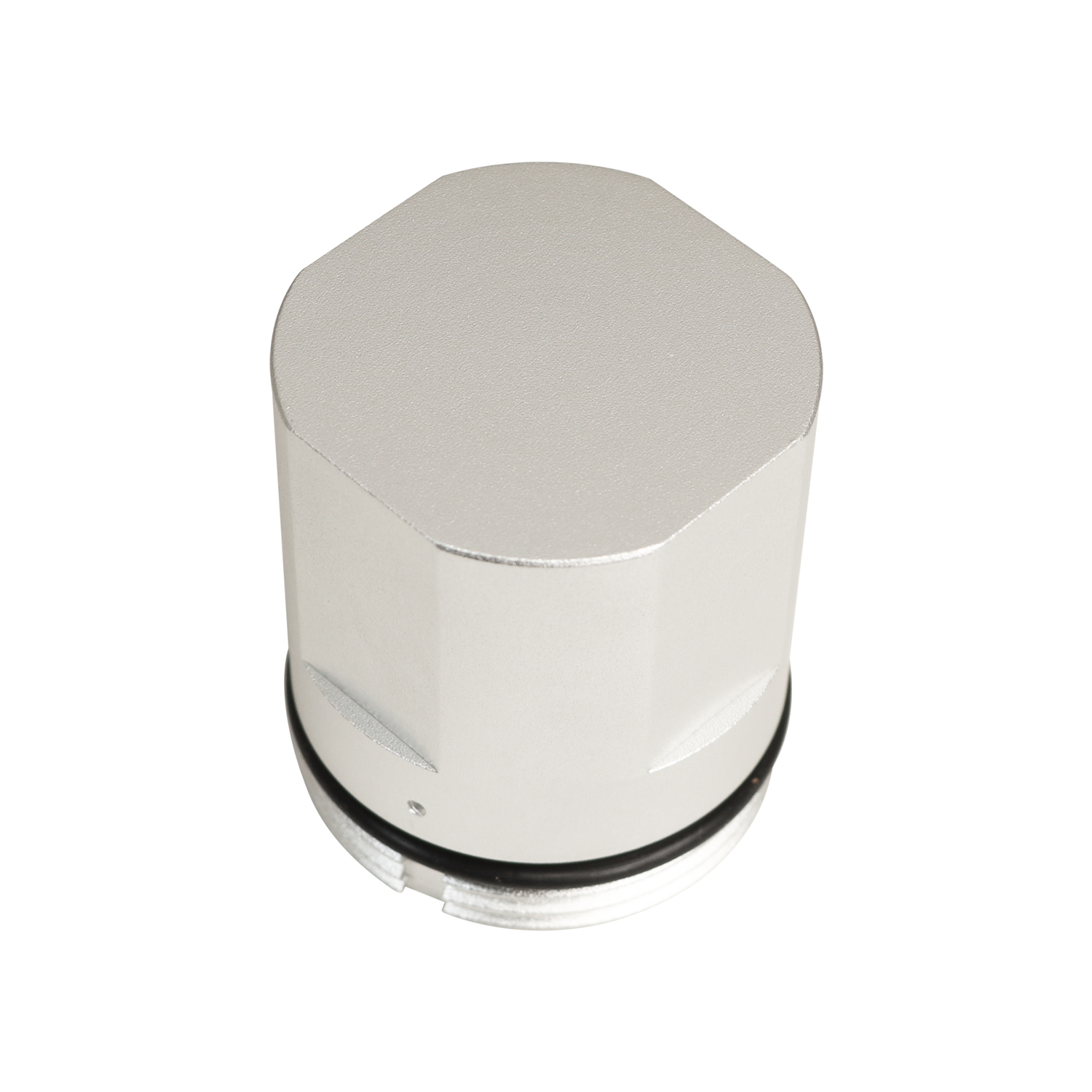

AD4965-MIMOSA
Frequency Range
4.9-6.5GHz
Isolation
>15dBi
Transmission Loss
<0.5dBi
VSWR
<1.5
Maximum Power Per Port
100W
Impedance
50Ω
Mechanical
Connector
2* RPSMA
Dimension (Diameter x Height)
Ø53*70mm
Antenna Weight
0.5kg
