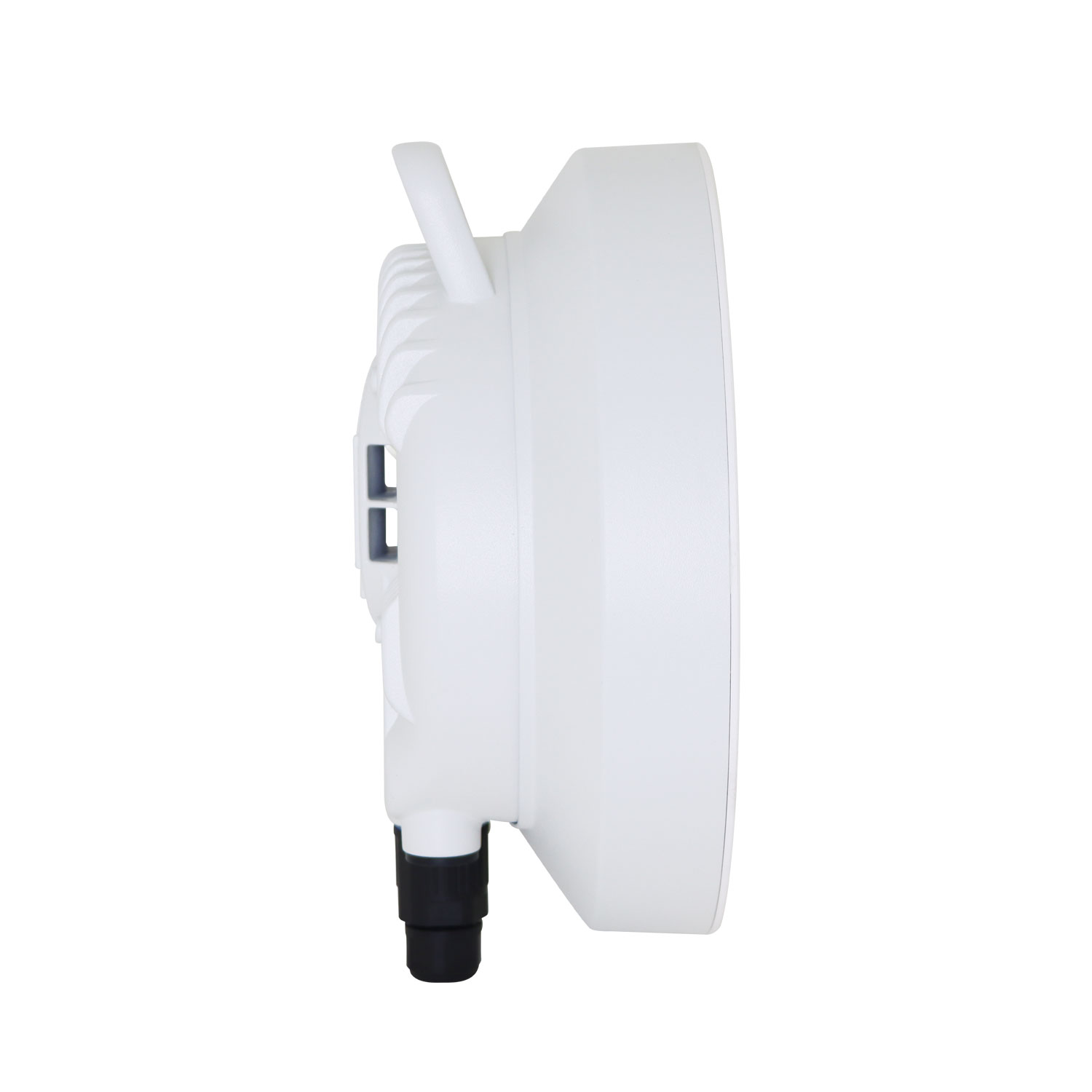

E520

5.1-6.425GHz Wi-Fi 7 Radio with 20dBi Dish Antenna
CPU
Qualcomm Quad A53@1.5 GHz
Wireless Standards
Wi-Fi 7 / 802.11be
Frequency
5.15-6.425GHz
Channel Width
20|40|80|160|320 MHz
Networking interface
1*2.5Gigabit Ethernet
SFP
2.5G SFP
Antenna Gain
20dBi integrated Dish Antenna
Beam width
20 degree
Dimensions
Φ24 cm
  • E520
  • E520
  • E520
  • E520
  • E520
  • E520
  • E520
  • Features

  • Specification

  • In The Box

  • LibreNMS

  • Downloads

Model

E520

CPU

Qualcomm Quad A53 @ 1.5GHz

Operating Frequency

5150-6425MHz

Wireless Standards

WIFI 7 / 802.11be

Channel Width

20|40|80|160|320 MHz

Proprietary Physical Layer

2x2 MIMO

Networking interface

1*2.5Gigabit Ethernet + 1*2.5Gbps SFP

Max Output Power

26dBm

Antenna Frequency

5.1-7.125GHz

Antenna Gain

20dBi Dual Linear

Antenna Beam width

E:30°/ H30°

Antenna Materials

Die-cast aluminum

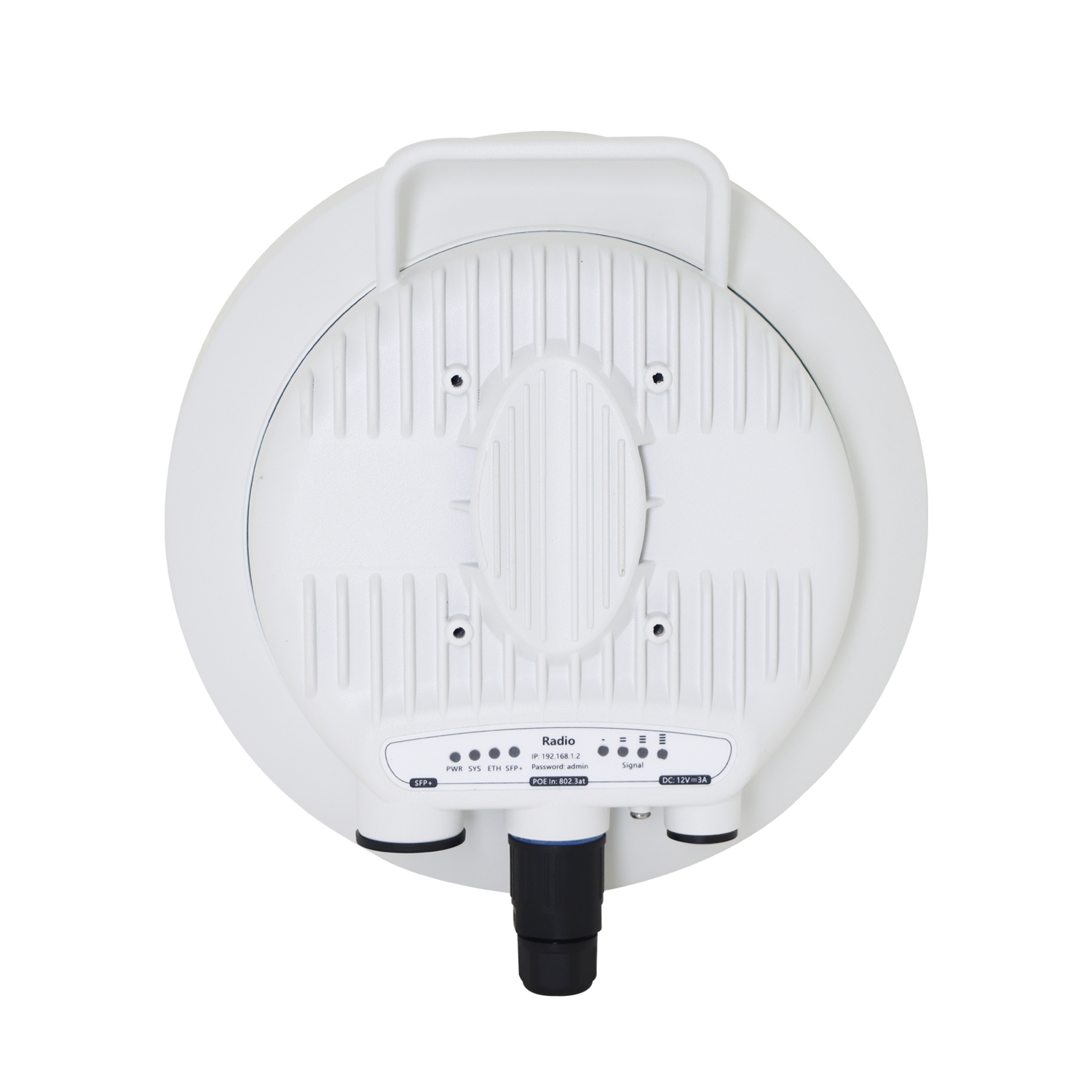

LEDs

1*Power, 1*SYS, 1*Wi-Fi

Power Supply

PoE 22-56V, or DC 12V

Power Consumption

<16W

Surge suppression

6KV

Weatherproof Enclosure

IP67

Antenna Size

Φ24 cm

Weight

1.5kg

Temperature

-30°C to 60°C

Network Mode

Bridge/Router

Firewall

Port Forwarding ,DMZ,ACL Filtering

Wireless Security

WPA-PSK,WPA2-PSK,WPA/WPA2-PSK(AES/TKIP)

VLAN

802.1Q

DHCP

DHCP Server、DHCP Client

SNMP

TR069

PoE

included

LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
