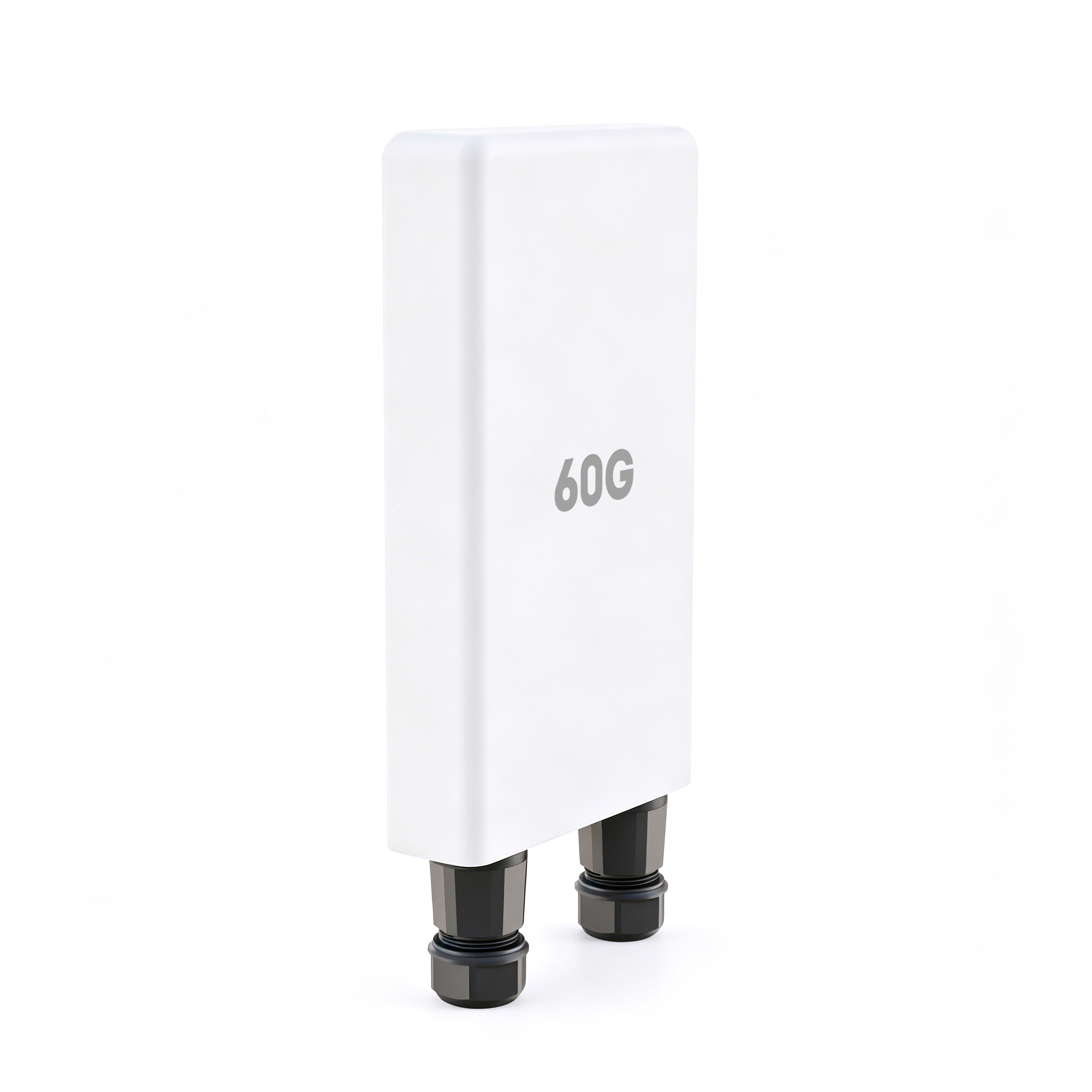

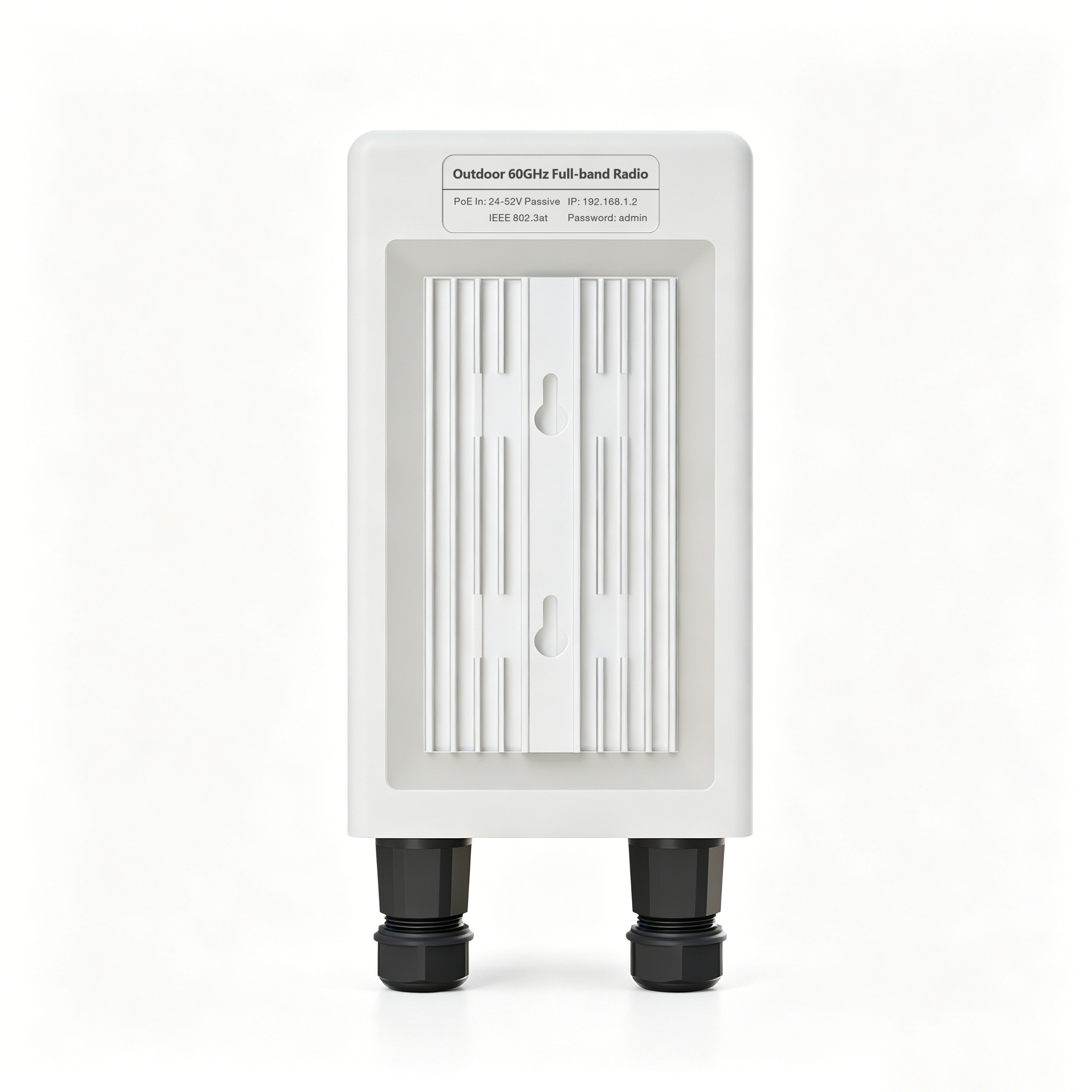

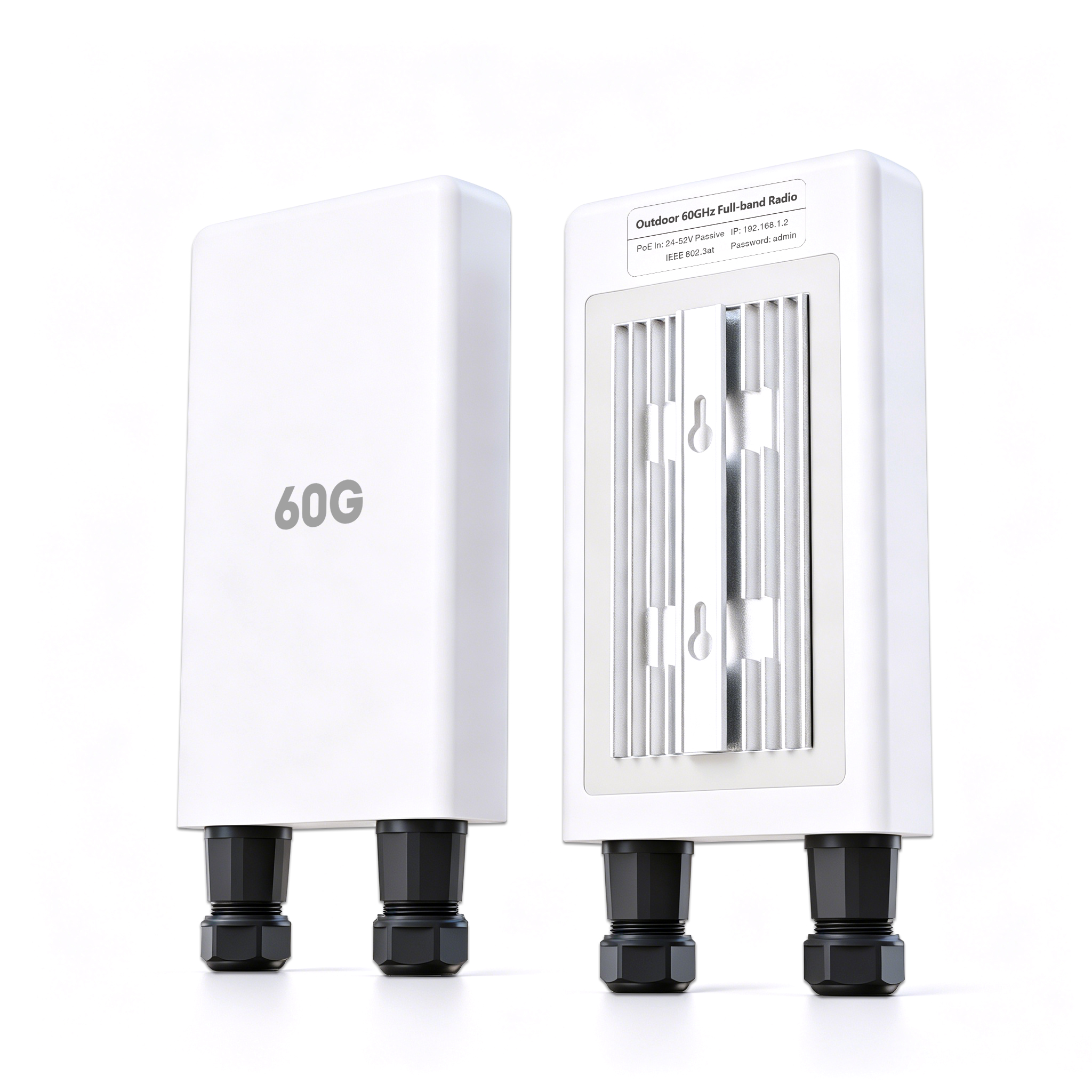

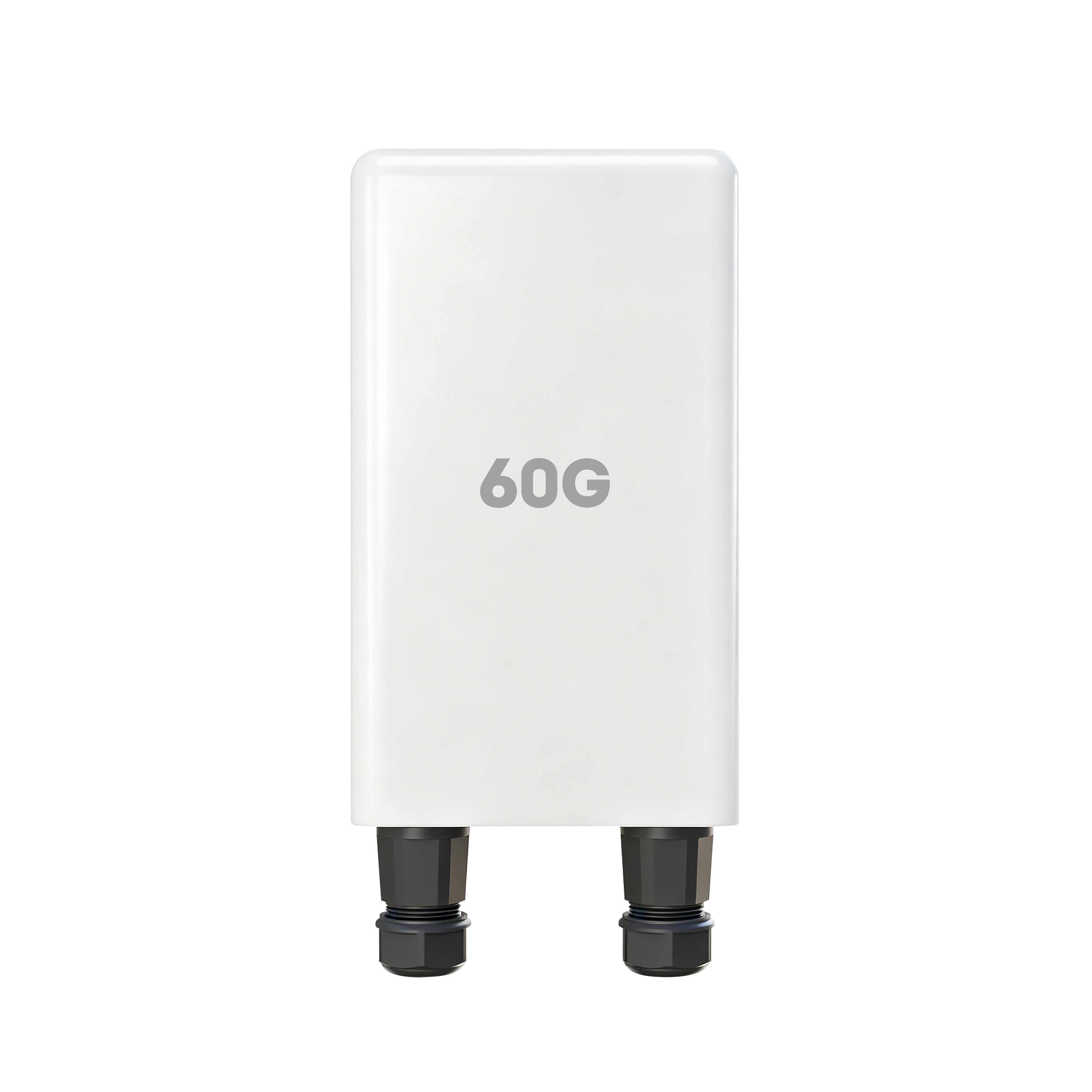

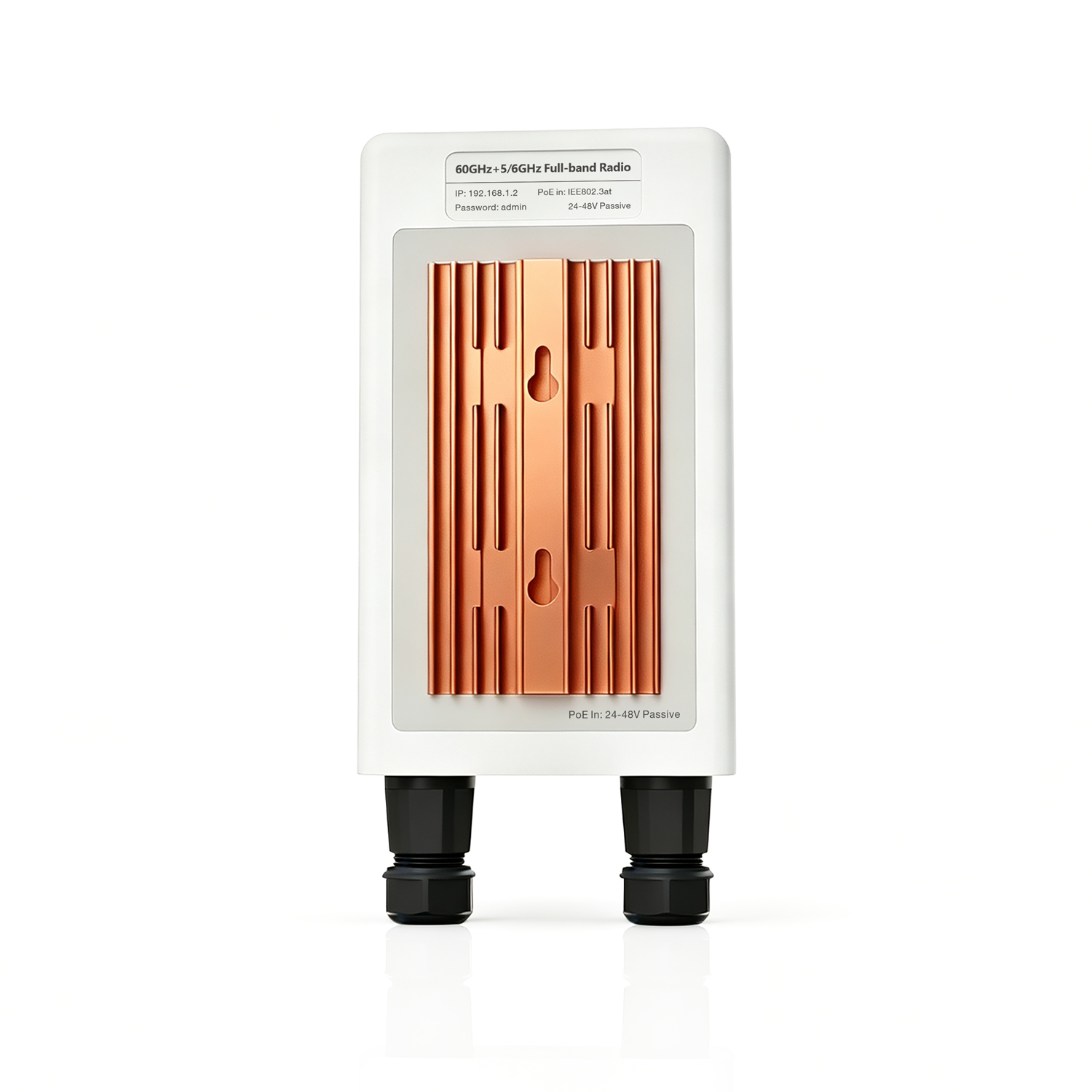

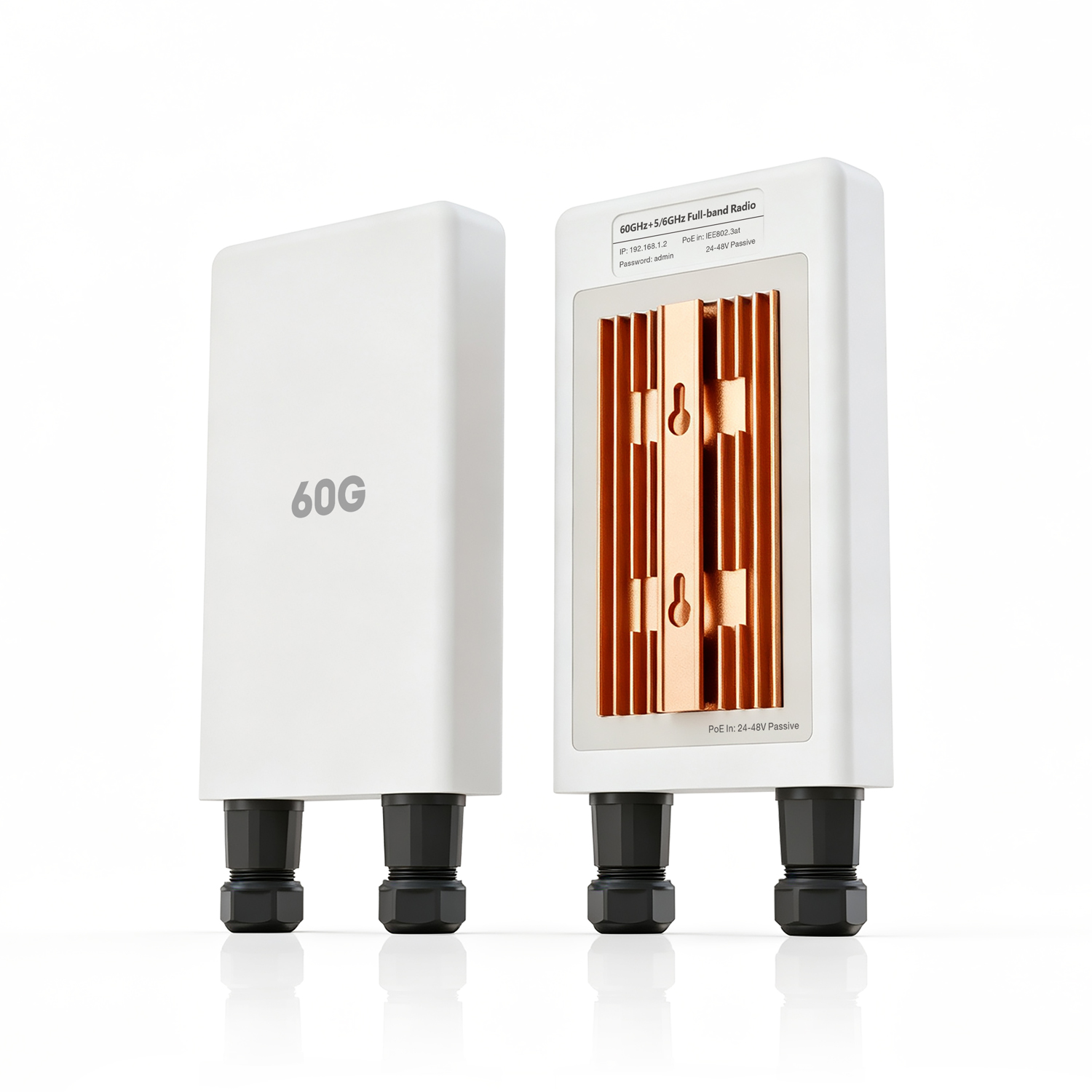

The E60 is our first full-band 60GHz radio with an integrated 5-7GHz backup link
|
Mechanical |
|
|
Dimensions |
180*105*31mm |
|
Weight |
0.8kg |
|
Enclosure materials |
Aluminum alloy, UV stabilized polycarbonate |
|
Mount |
Pole Mount |
|
Wind loading |
127 N at 200 km/h (28.6 lbf at 125 mph) |
|
Outdoor Ingress Protection Rating |
IP65 |
|
Hardware |
|
|
Processor |
Qualcomm Quad A53 @ 1.1GHz |
|
Memory |
1GB DDR4 |
|
Networking interfaces |
2*2.5xGigabit Ethernet |
|
Button |
Factory reset |
|
PoE input power |
|
|
Max. power consumption |
25W |
|
GPS |
N/A |
|
Operating temperature |
-40 to 55° C (-40 to 131° F) |
|
Operating Humidity |
5 to 100% condensing |
|

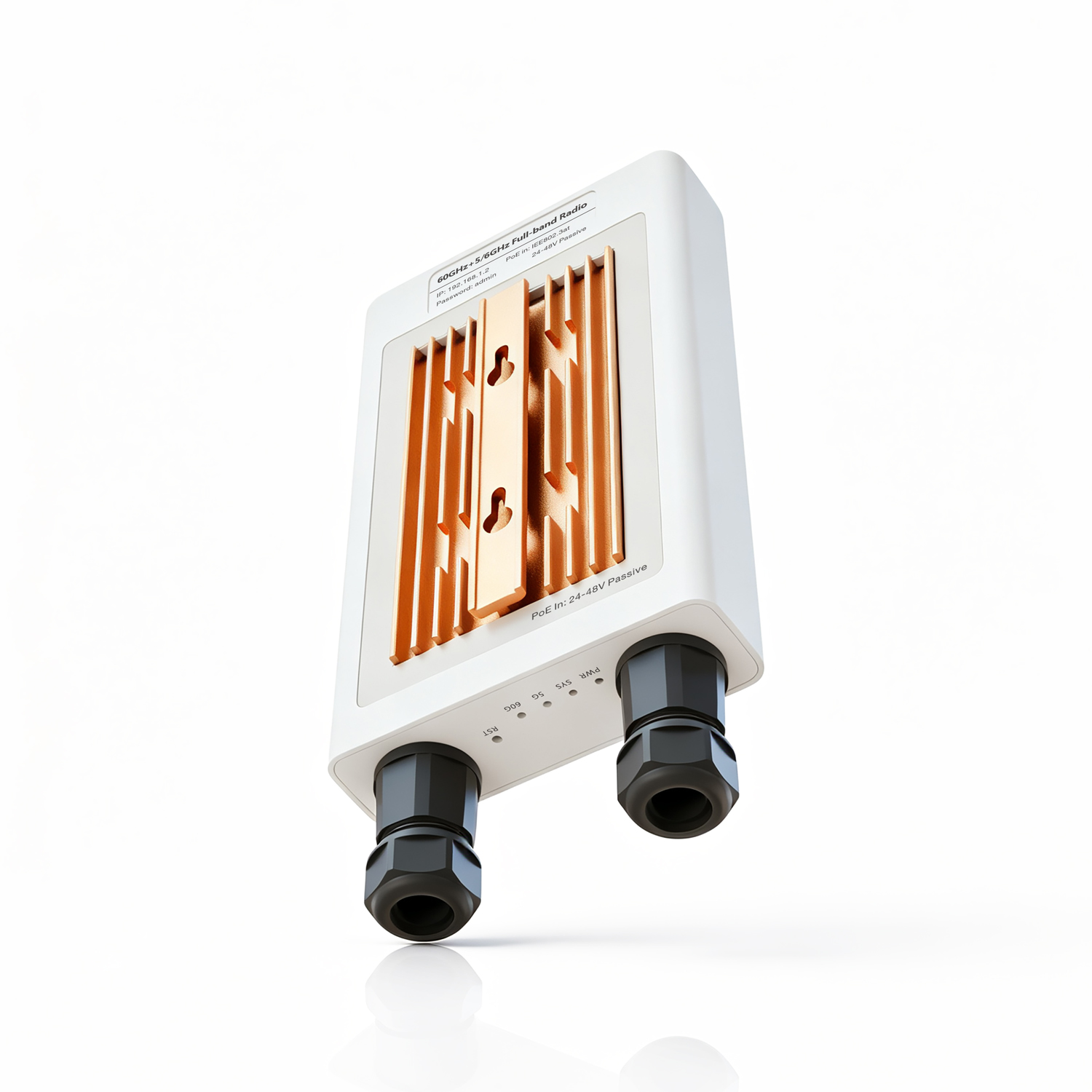

LEDs |
|
|
Power |
Green: Radio Power on |
|
SYS |
Flashing Green: bootup in progress Green: Working |
|
Ethernet |
Flashing Green: Ethernet traffic detected |
|
Wi-Fi |
Green: Linked |
|
60G |
Green: Linked |
|
System |
|
|
Networking mode |
Transparent bridge / IPv4 & IPv6 Supported |
|
VLAN capabilities |
Data VLAN (in station mode) & management VLAN |
|
Encryption |
WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE |
|
Operating modes |
AP WDS、Client WDS |
|
Network Mode |
Bridge/Router |
|
Services |
ping watchdog,NTP server,NTP client, system log |
|
Utilities |
discovery utility, ping, trace route，spectral analysis，nslookup，distance |
|
VLAN |
802.1Q with 802.1p priority |
|
DHCP |
DHCP Server、DHCP Client |
|
Network Management |
HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069 |
|
60GHz RF |
|
|
Operating frequency* |
Full band: 57-71 GHz: channels: 1-6 |
|
Duplexing |
TDMA: dynamic scheduling mechanism / TDD |
|
Security Modes |
128-bit AES WPA3 |
|
Max EIRP |
38dBm |
|
Antenna Gain |
14dBi |
|
Antenna Beam width |
E:45°/ H45° |
|
5-7 GHz Backup RF |
|
|
Operating frequency* |
5150-7125MHz |
|
Wireless Standards |
802.11n/ac/ax/be |
|
MAX EIRP |
36dBm |
|
Channel bandwidth |
20|40|80|160|320MHz |
|
Antenna Gain |
14dBi |
|
Antenna Beam width |
E:45°/ H45° |
|
Dual-Linear |
Dual-Linear |
