Marine Cellular Internet
5G CPE onBoard

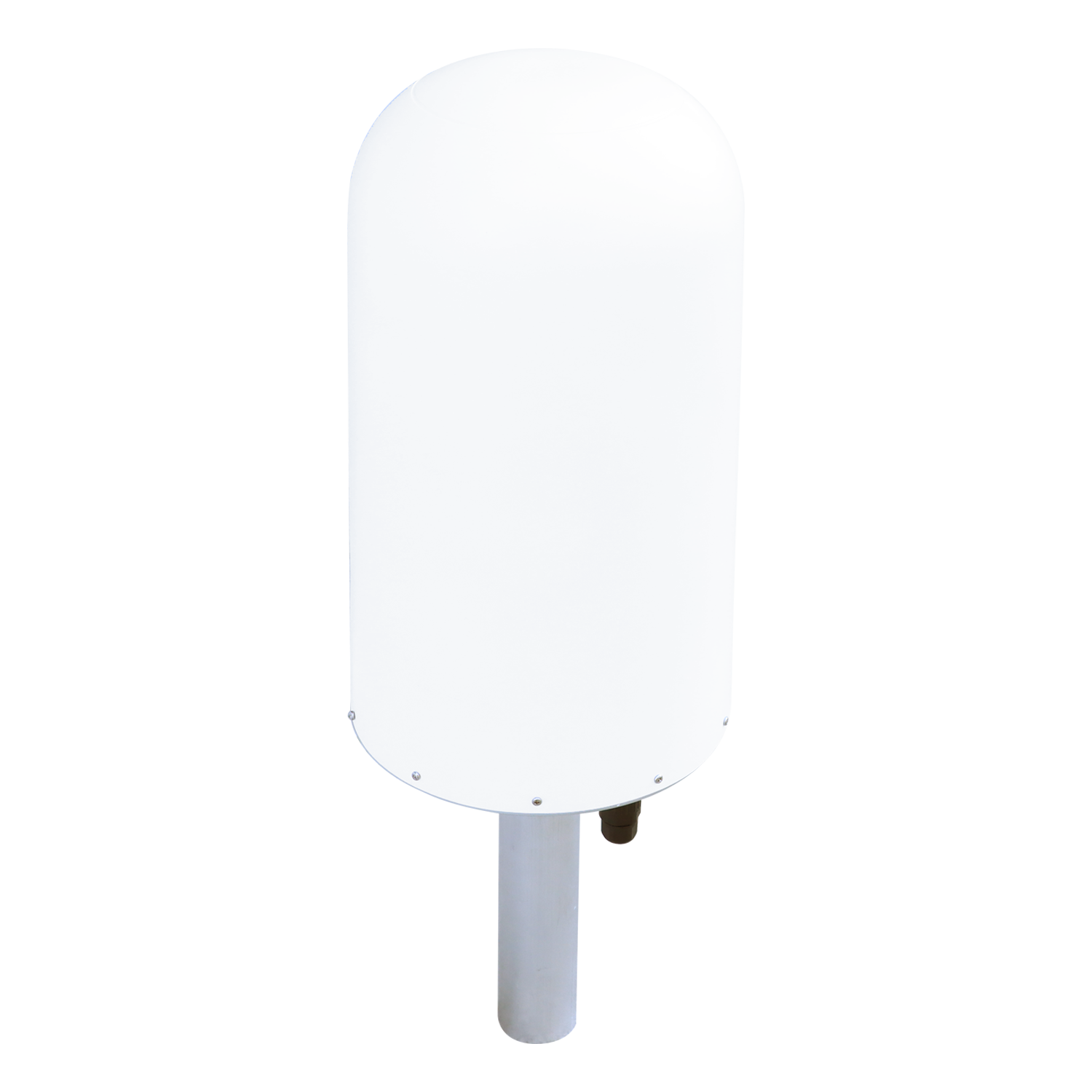

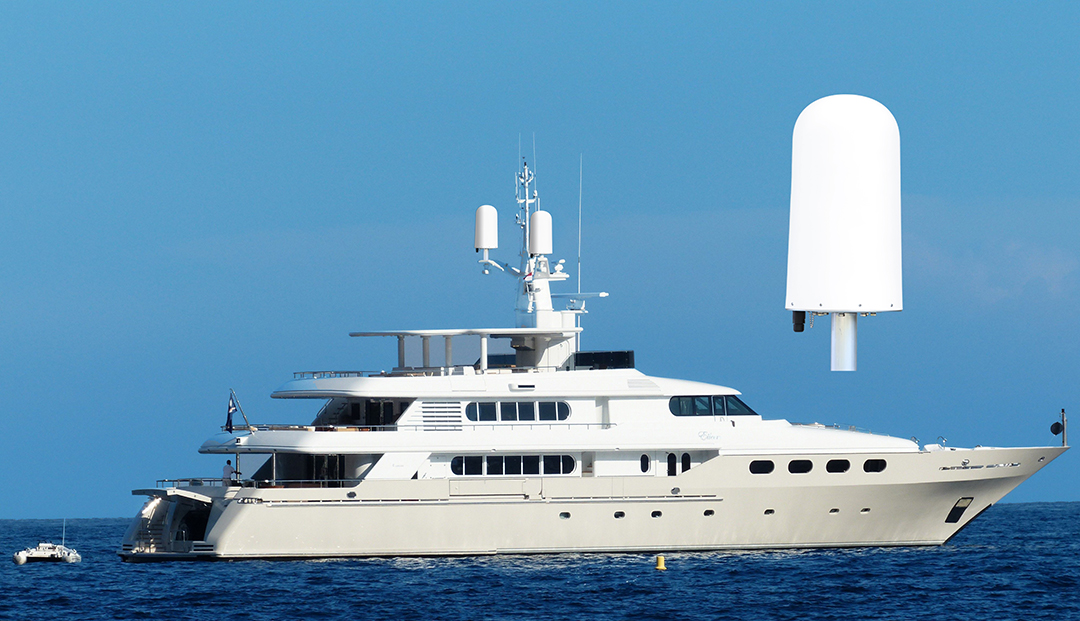

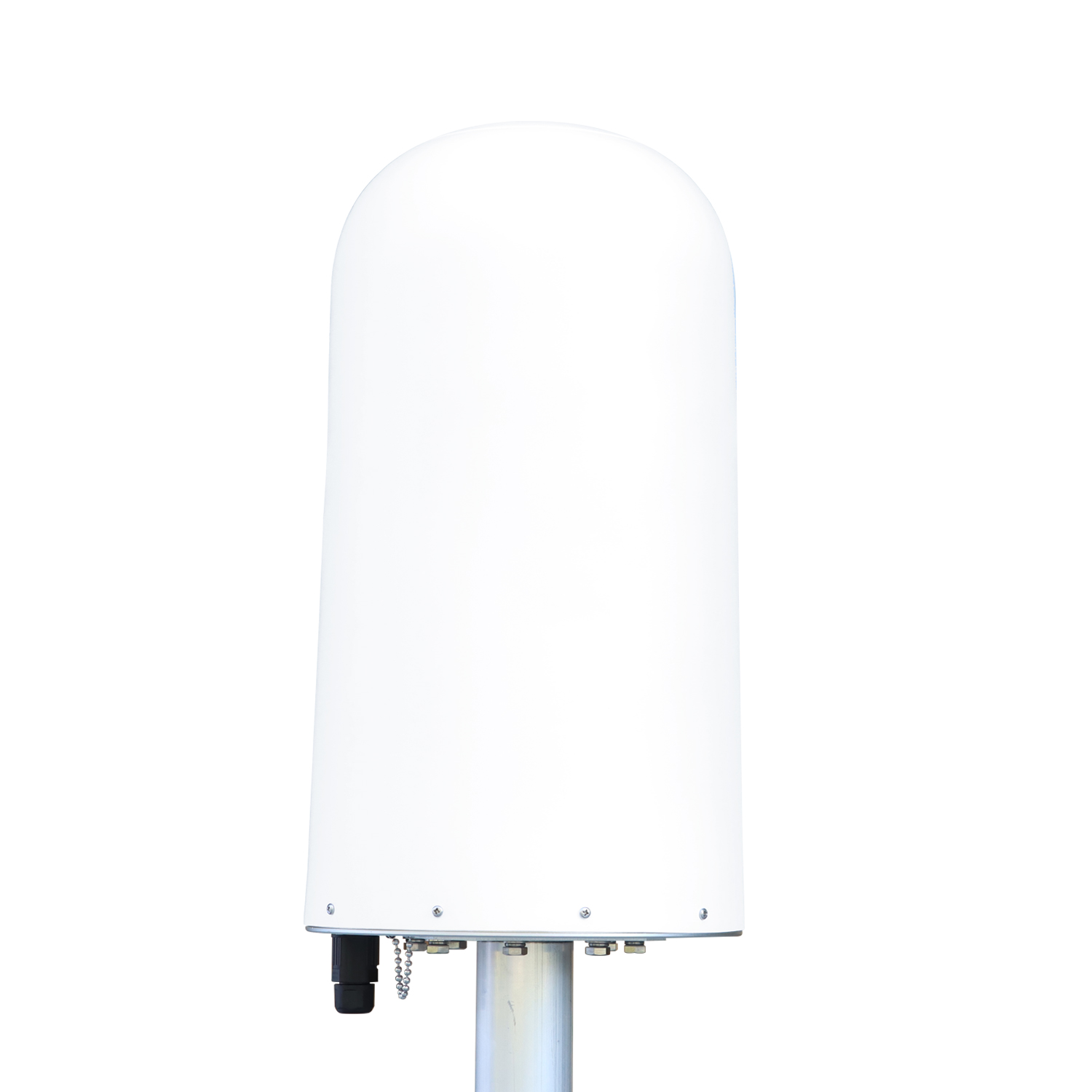

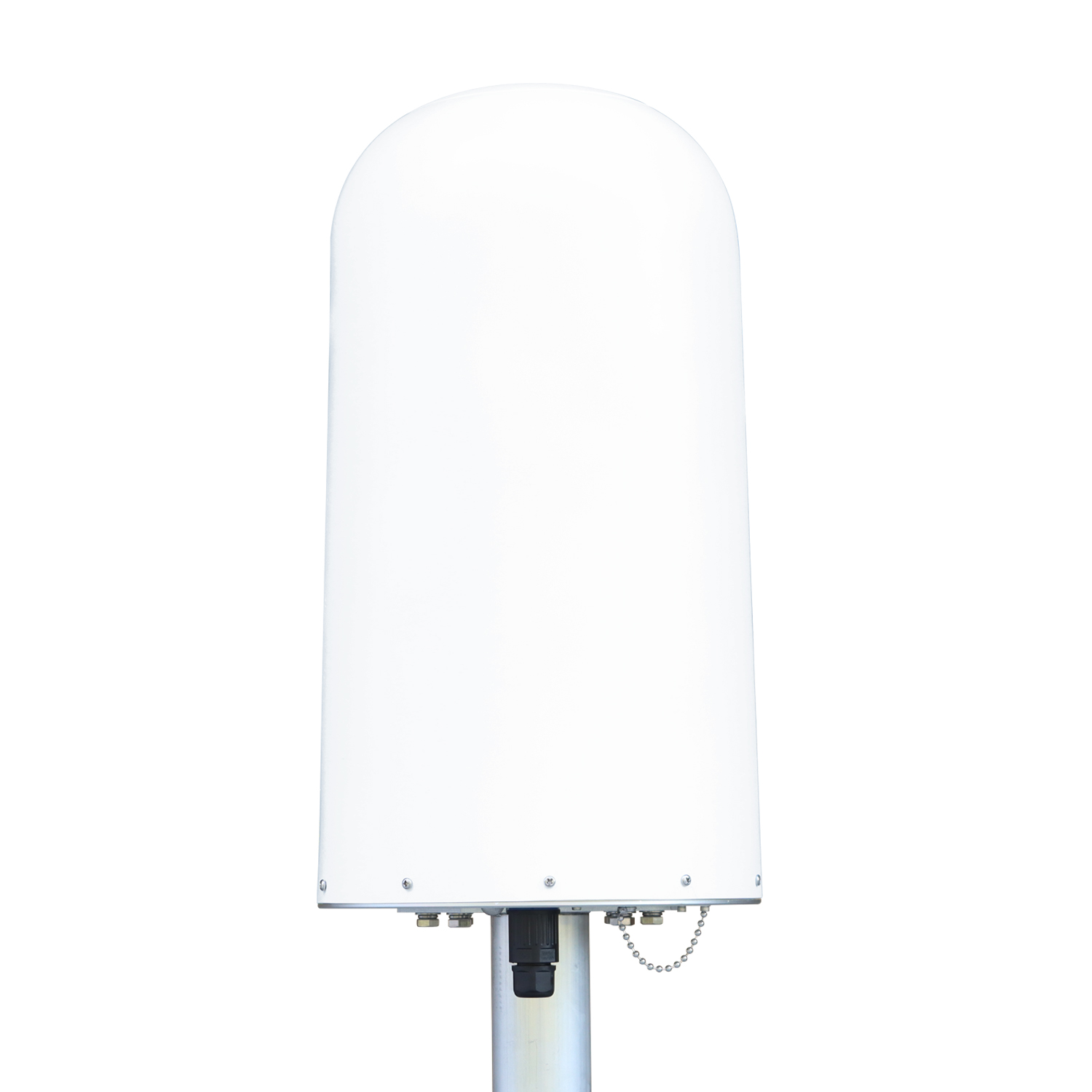

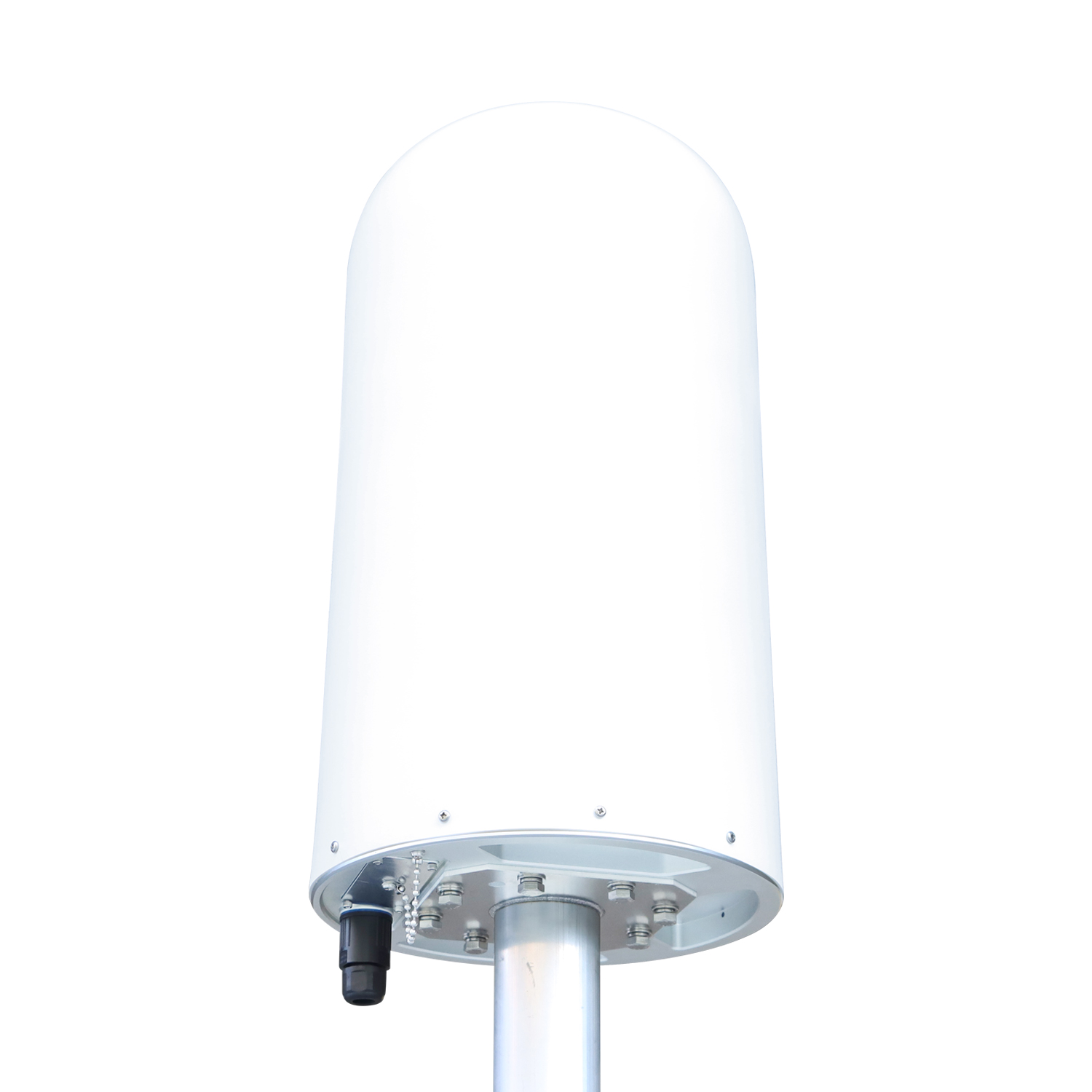

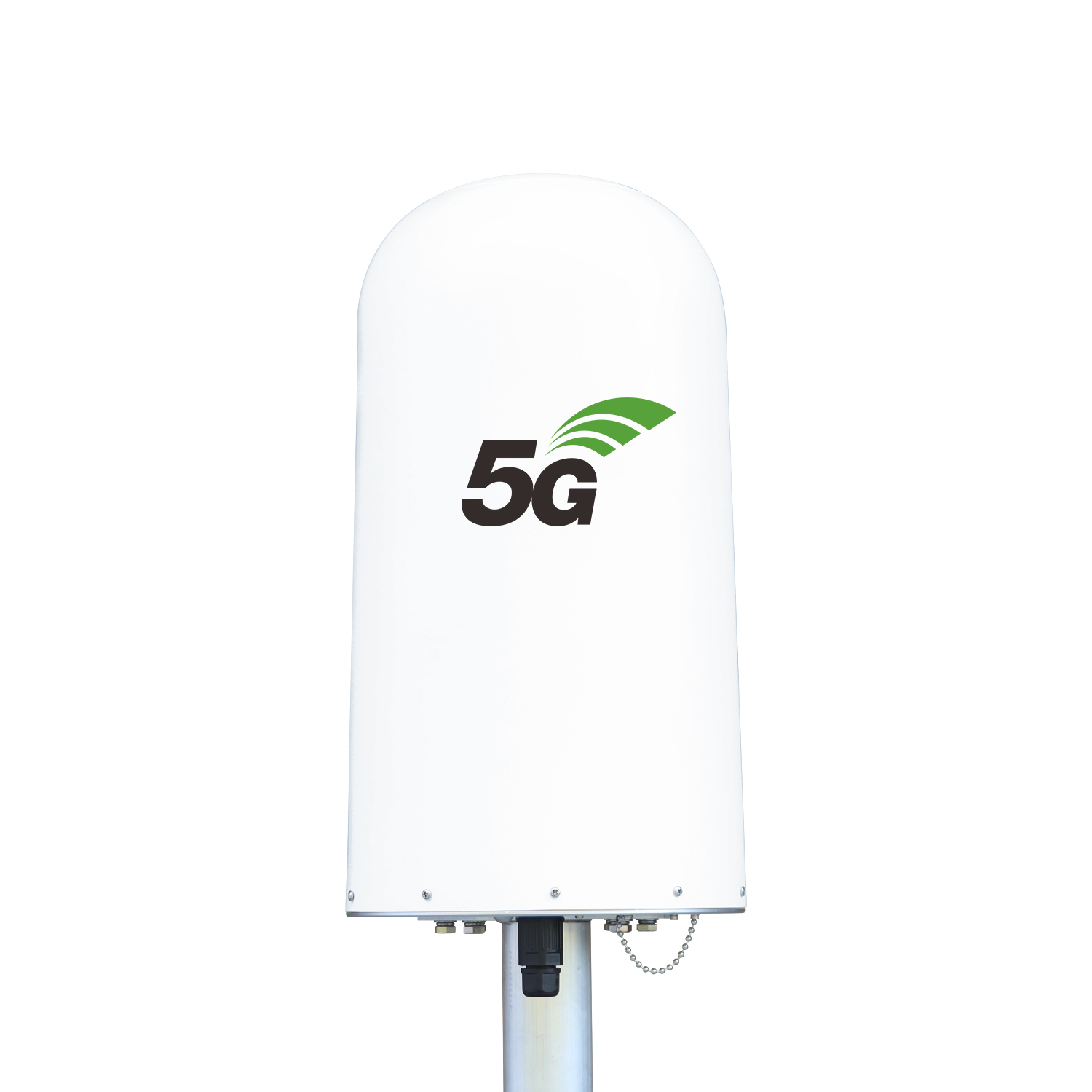

The 5G CPE onBoard is a long-range, plug-and-play 4G/5G dome antenna designed to
provide reliable internet connectivity at sea,extending up to 50 nautical miles from shore.
Key Features
※ High-Speed, Reliable 4G/5G Internet
※ Reduced Satellite Costs
※ Uses cellular networks when available, cutting connectivity expenses.
※ Supports the latest 5G and LTE bands, ensuring long-term reliability.
※ Designed for Harsh Marine Environments
※ Weatherproof, UV-resistant, and built for durability.
Specifications
|
Model |
ODU-Boat |
|
|
Network Technology |
LTE/5G |
|
|
5G |
NR NSA |
n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76/ 77/ 78 |
|
NR SA |
n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 75/ 76/ 77/ 78 |
|
|
DL 4x4 MIMO |
n1/ 3/ 7/ 38/ 40/ 41/ 71/ 77/ 78 |
|
|
UL 2x2 MIMO |
n1/ 3/ 5/ 7/ 28/ 38/ 40/ 41/ 77/ 78 |
|
|
LTE |
LTE-FDD |
B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71 |
|
LTE-TDD |
B38/ 40/ 41/ 42/ 43 |
|
|
DL 4x4 MIMO |
B1/ 3/ 7/ 38/ 40/ 41/ 42 / 43/ 71 |
|
|
Max Cellular Data Rate |
5G SA Sub -6 |
2.4 Gbps (DL)/900 Mbps (UL) |
|
5G NSA Sub -6 |
3.4 Gbps (DL)/550 Mbps (UL) |
|
|
LTE |
1.6 Gbps (DL)/200 Mbps (UL) |
|
|
Cellular Antenna Frequency |
617-3800MHz |
|
|
Wi-Fi |
801.11be/Wi-Fi 7（external router） |
|
|

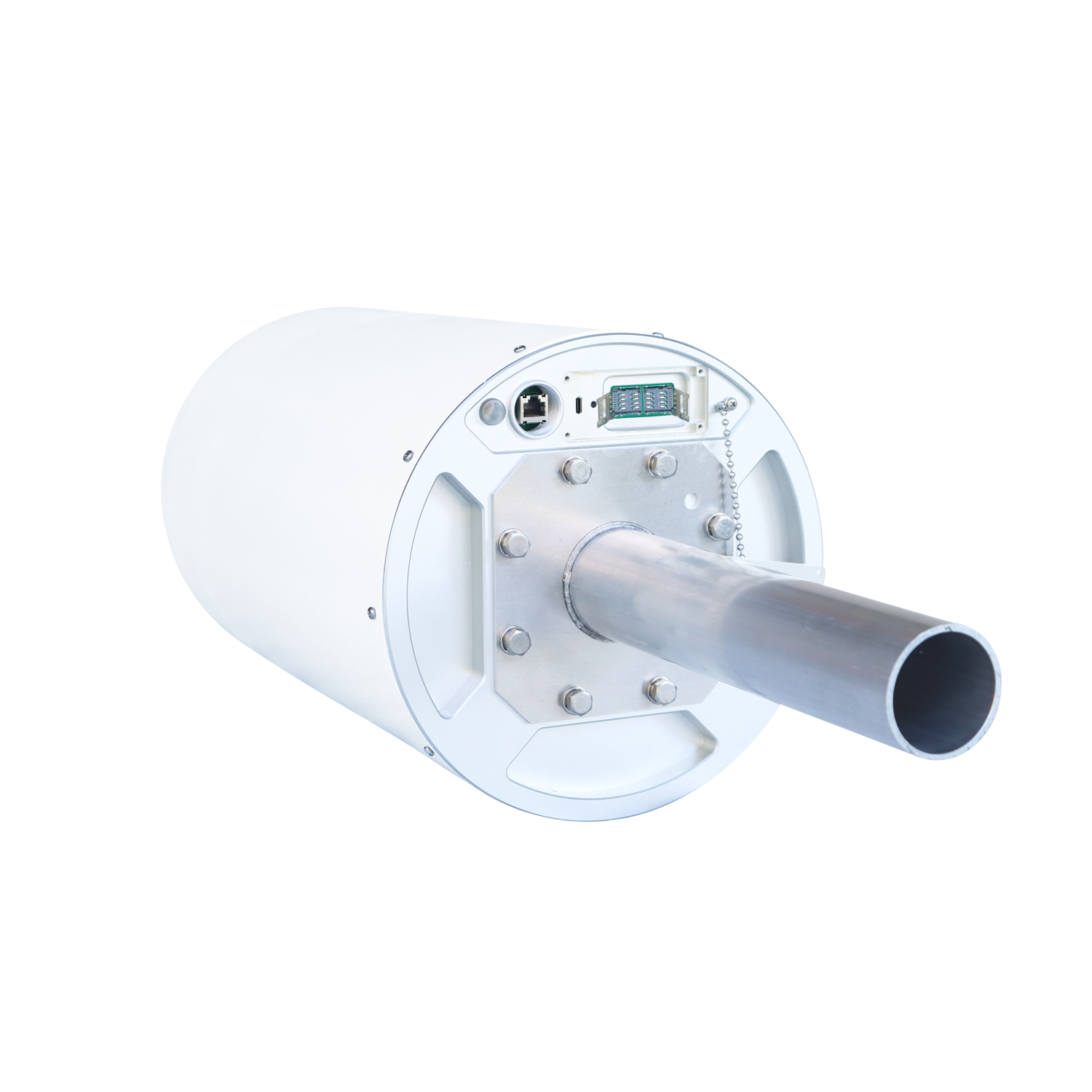

Physical Interfaces |
1 x 2.5G Ethernet Port (supports 802.3af/at PoE) |
|
|
2 x SIM Card Slots |
||
|
1 x Type C Port |
||
|
1 x Reset Button |
||
|
Protection Rating |
IP67 |
|
|
Power Supply |
802.3af/at PoE |
|
|
Dimensions |
Φ267x 493mm |
|
|
Weight |
5KG |
|
|
Color |
White |
|
|
Power Consumption |
<20W |
|
|
Mounting |
pole mount (customizable) |
|
