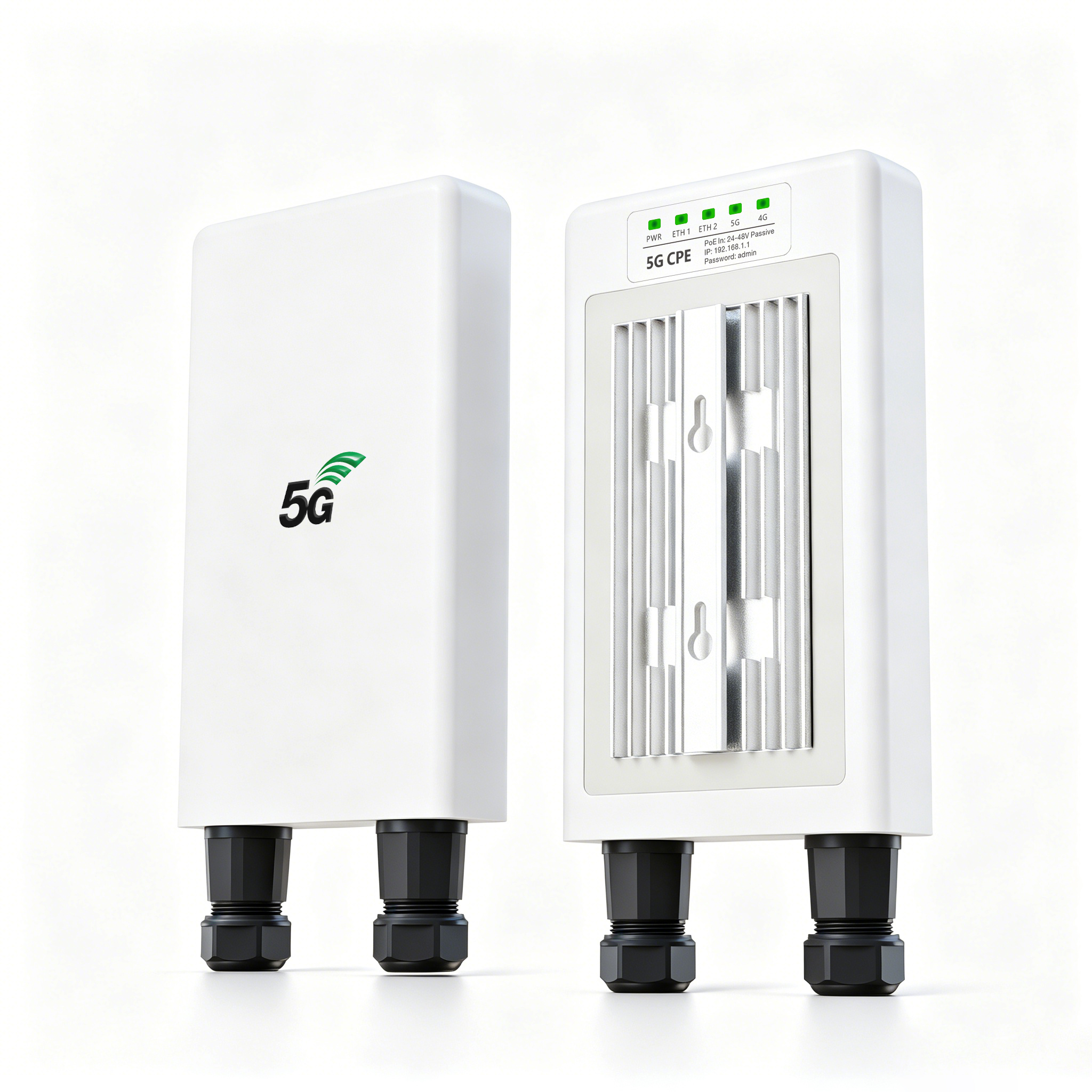

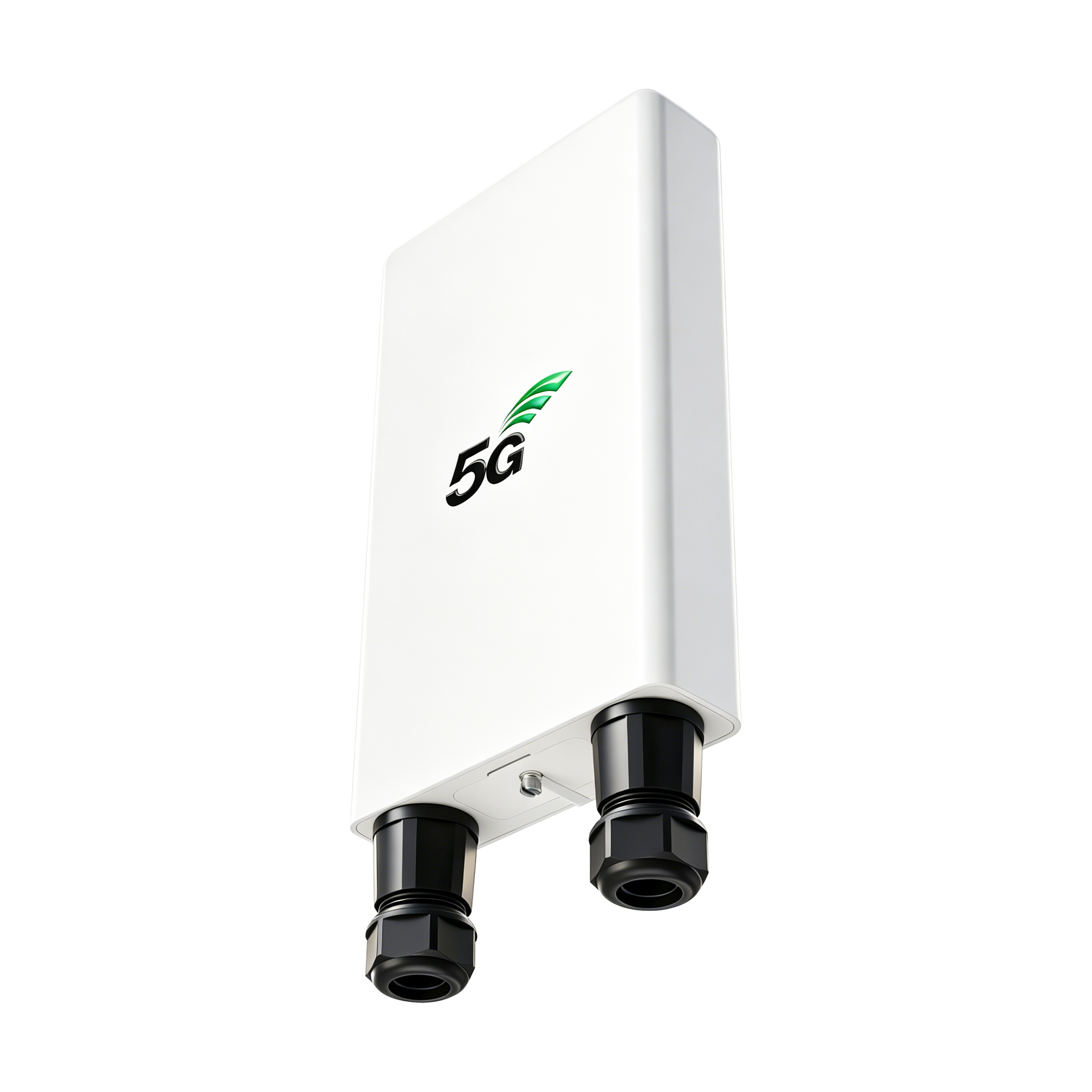

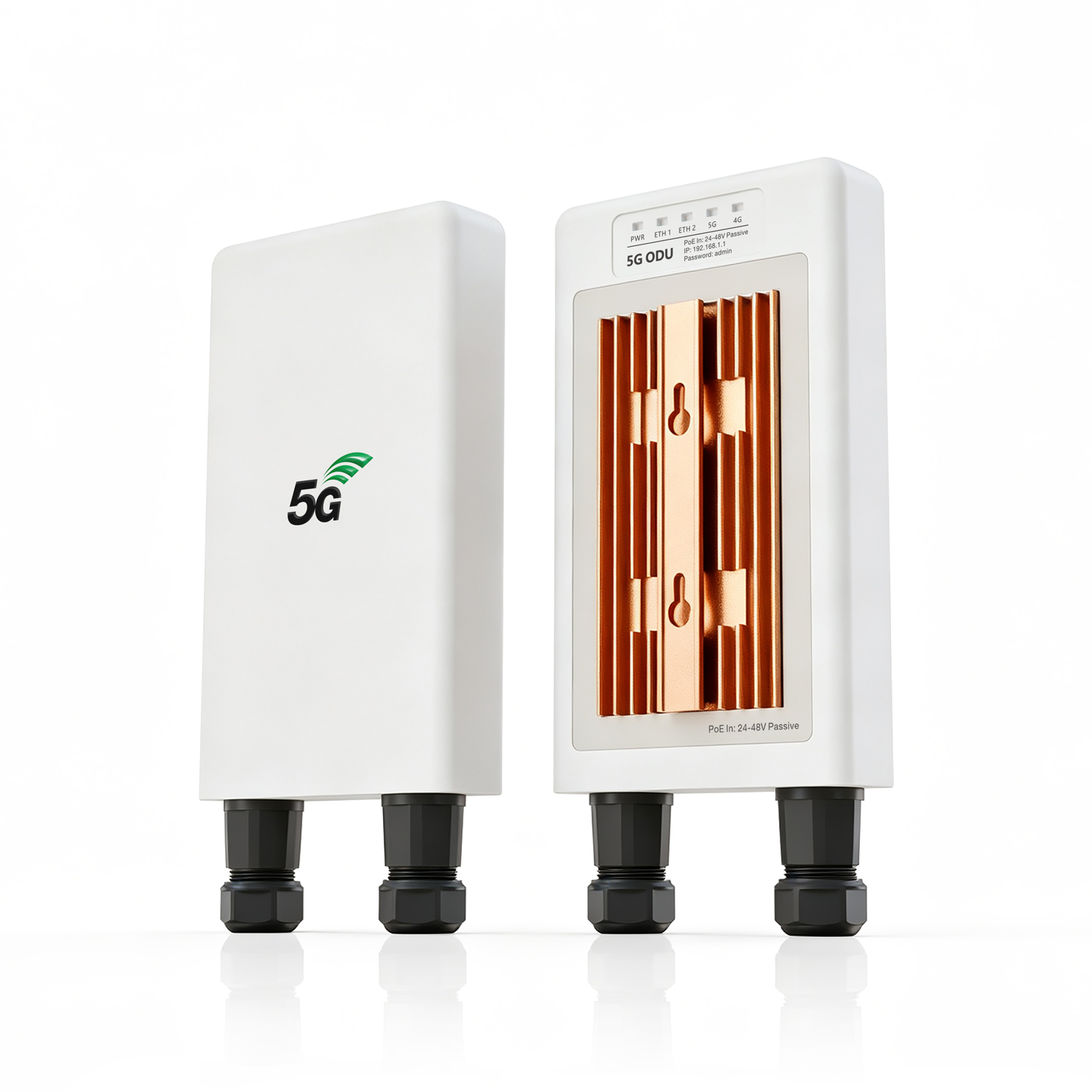

5G/LTE High-Performance Outdoor CPE
The ODU8-T830 5G Outdoor CPE is an industrial-grade, IP67-rated outdoor 5G cpe designed for high-speed Fixed Wireless Access (FWA) and enterprise wireless broadband. It delivers ultra-fast 5G NR connectivity with integrated high-gain antennas and a 2.5 Gigabit Ethernet interface for seamless indoor network integration.
|
Product feature ● Worldwide 5G and LTE-A coverage● Supports 5G NSA and SA modes ● Supports 5G carrier aggregation (CA) and EN-DC, with peak throughput up to 7 Gbps ● Built-in high-gain wide-bandwidth antennas ● Integrated 2.5 Gigabit Ethernet LAN port ● Rich software features, supporting NAT and Bridge modes ● IPv4 / IPv6 dual stack and multiple PDN support ● Built-in VPN supporting PPTP / L2TP / GRE with IPsec ● Web-based and TR-069 remote device management |
 |
Specifications
|
Model |
ODU8-T830 |
|
Platform |
MTK T830 |
|
Processors |
ARM Quad-core Cortex-A55 2.2GHz |
|
Applicable Network |
5G/4G |
|
Standard |
3GPP Release 16 |
|
RAM/ROM |
1G+4G |
|
Network technology |
5G Sub-6 GHz and 4G LTE Cat 19，4x4 MIMO |
|
5G Frequency Bands |
NSA: n1/ 3/ 5 / 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78 SA:n1/ 3/ 5 / 7/ 8/ 20/ 28/ 38/ 40/ 41/75/ 76/ 77/ 78 |
|
DL CA |
DL 4CA/ UL 2CA |
|
DL 4 × 4 MIMO |
n1/ 3/ 5 / 7/ 8/ 20/ 28/ 38/ 40/ 41/ 77/ 78 |
|
UL 2 ×2 MIMO |
n38/ 40/ 41/ 77/ 78 |
|
LTE-FDD |
B1/ 3/ 5 / 7/ 8/ 20/ 28/ 32 |
|
LTE-TDD |
B38/ 40/ 41/ 42/ 43 |
|
LTE DL 4 × 4 MIMO |
B1/ 3/ 5 / 7/ 8/ 20/ 28/ 38/ 40/ 41/ 42/ 43 |
|
WCDMA |
B1/ 5/ 8 |
|
Data speeds |
5G SA Sub-6 : 7.01 Gbps (DL)/ 2.5 Gbps (UL) 5G NSA Sub-6: 5.67 Gbps (DL)/ 1.46 Gbps (UL) LTE:1.6 Gbps (DL)/ 211 Mbps (UL |
|
Antenna Frequency |
617-4200MHz |
|
Cellular Antenna |
8*8 |
|
Cellular Antenna Gain |
> 8dBi |
|
Led Indicator |
1*PWR,1*SYS,2*ETH,1*5G ,1*4G |
|

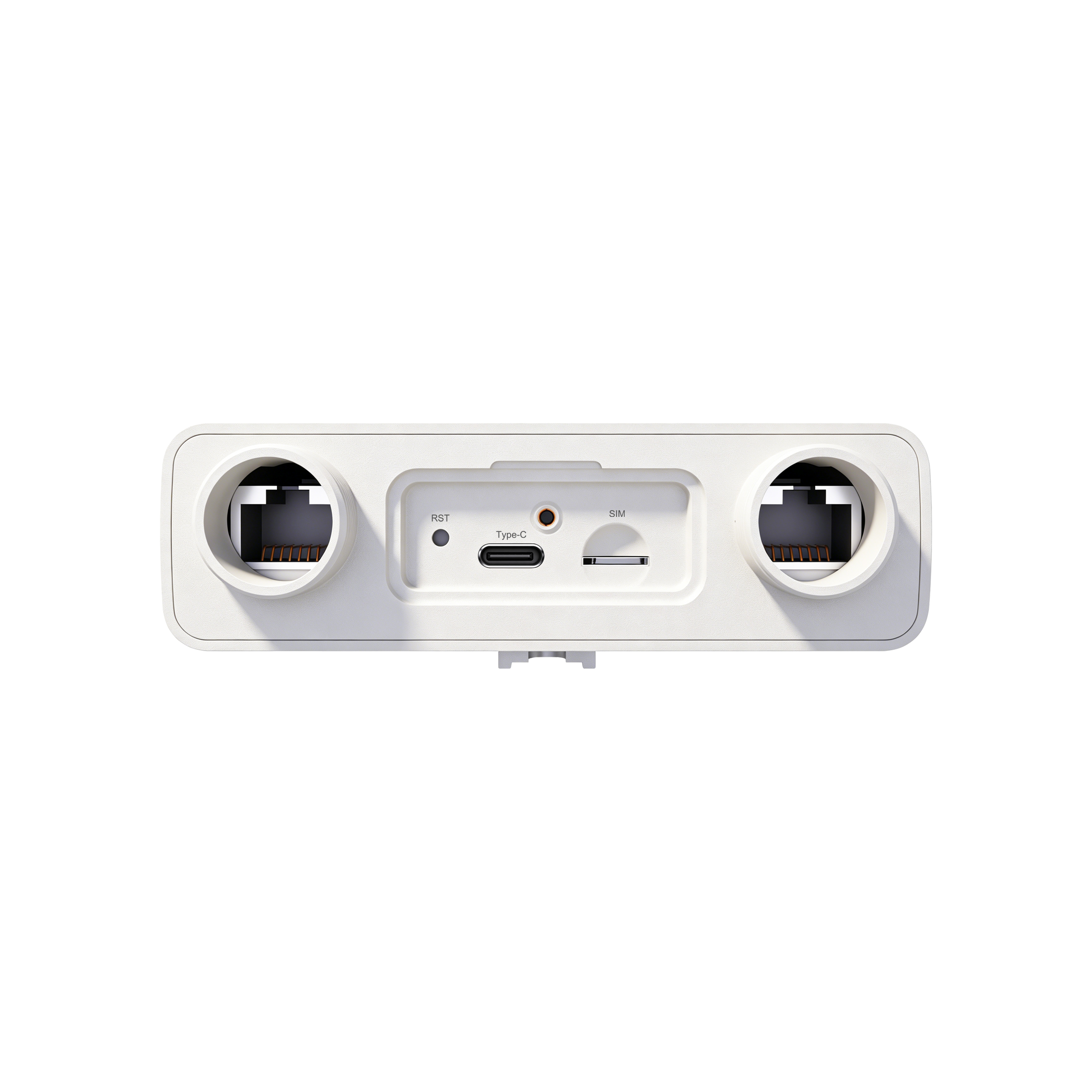

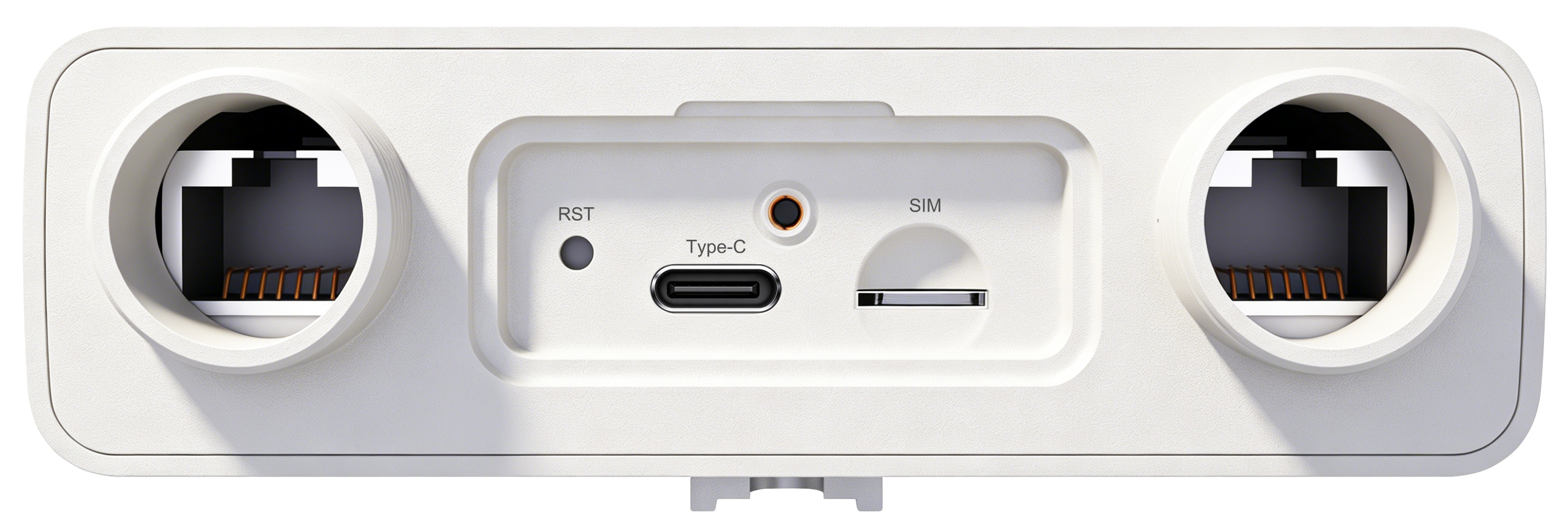

Ports |
2*2.5 Gigabit ports, 1* Reset,Type C |
|
SIM |
Nano SIM*1，eSIM* 1 |
|
Software |
APN,AT Command, PCI Lock, Bands Lock,SMS, IMEI Change |
|
Power Supply |
802.3af/at PoE (pin 12,36) or 24-48V Passive PoE (RJ45 pin 45,78) |
|

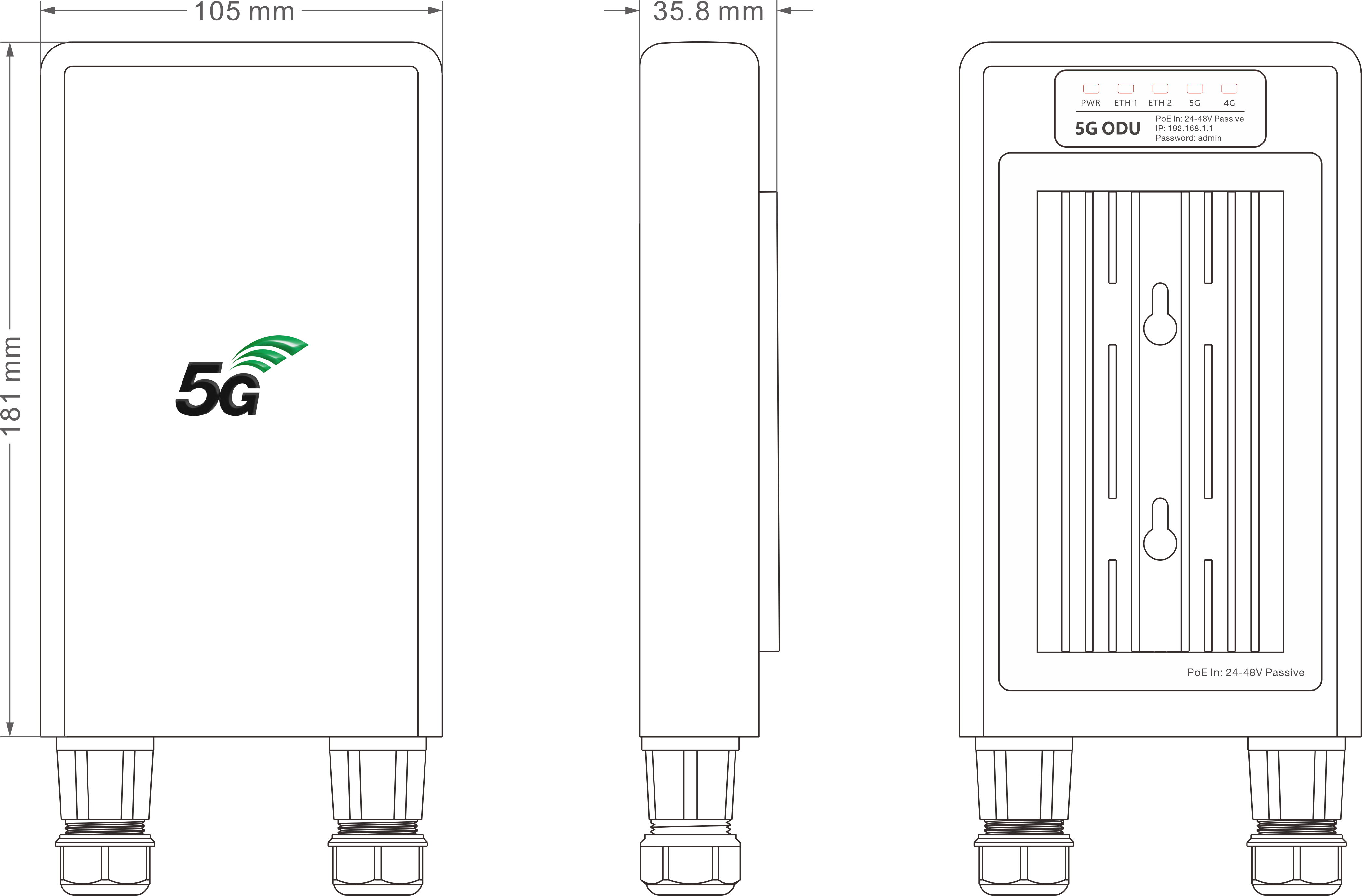

Dimensions |
180*105*31mm |
|
Weight |
0.6kg |
|
Color |
white |
|
Environment |
Operating temperature:-20℃ ~ 40℃ Storage temperature: -20℃ ~ 70℃ Humidity: 5% ~ 95% (non-condensing) |
