Product Overview

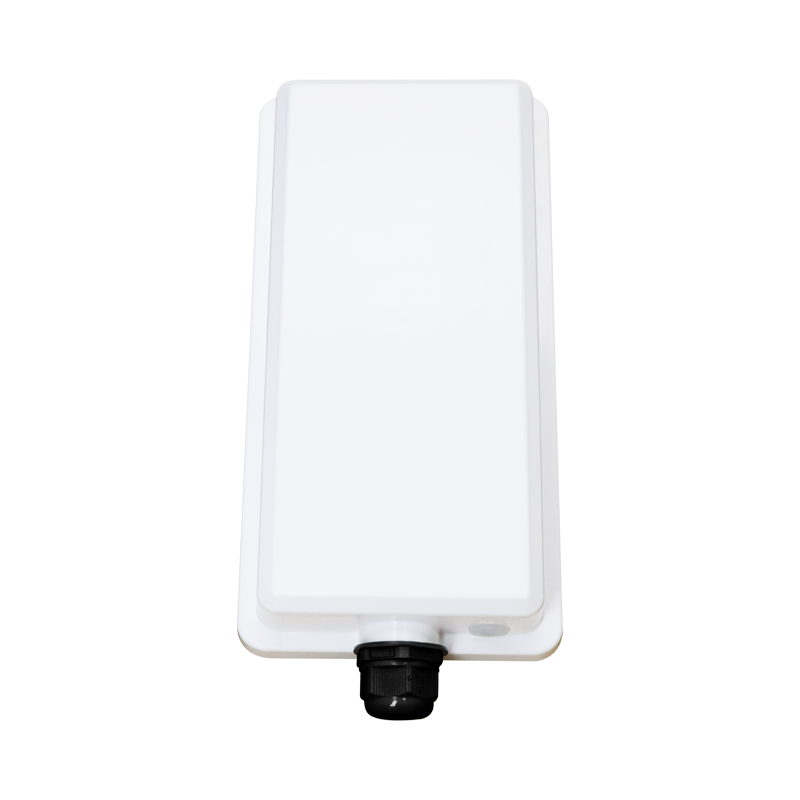

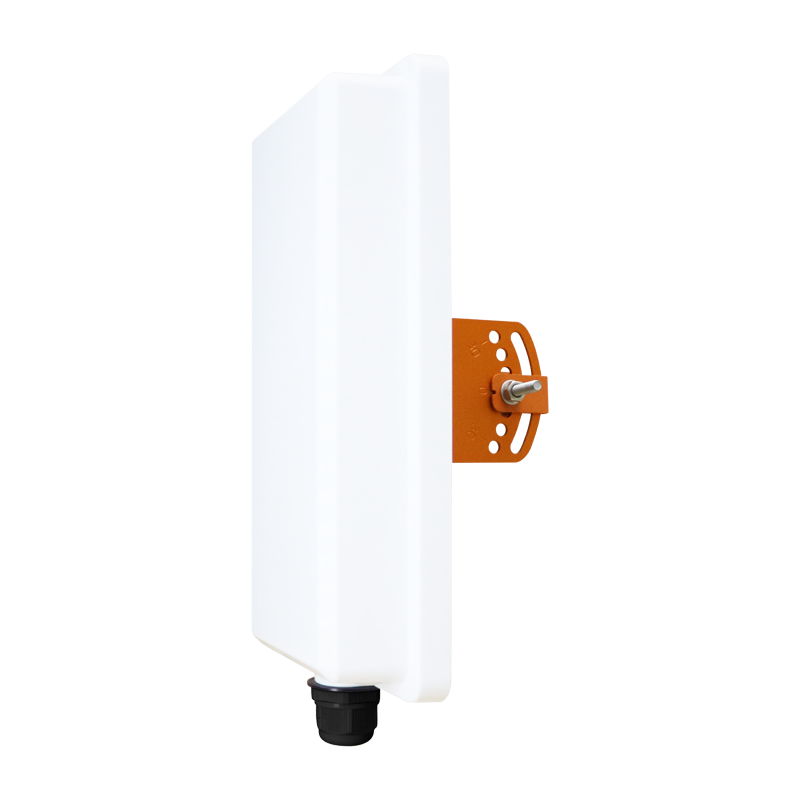

The X619 (AF) is a spatial product for Afghanistan and dedicated to cost effective solutions for outdoor wireless networking applications.
It is flexible and ideal for point-to-point, point-to-multi point and outdoor Wi-Fi coverage applications.
Professional performance, coupled with user-friendly design, makes X619 (AF) an ideal choice for both business and home users.

The latest Wi-Fi 6 standard

● 1024 QAM
● 20MHz bandwidth (Spatial for Afghanistan)
● Wireless speed 240Mbps (on 20 MHz Channel Width)

High performance

● 19dBi dual-polarization directional antenna
● 27dBm output power
● Gigabit network port

Easy to install

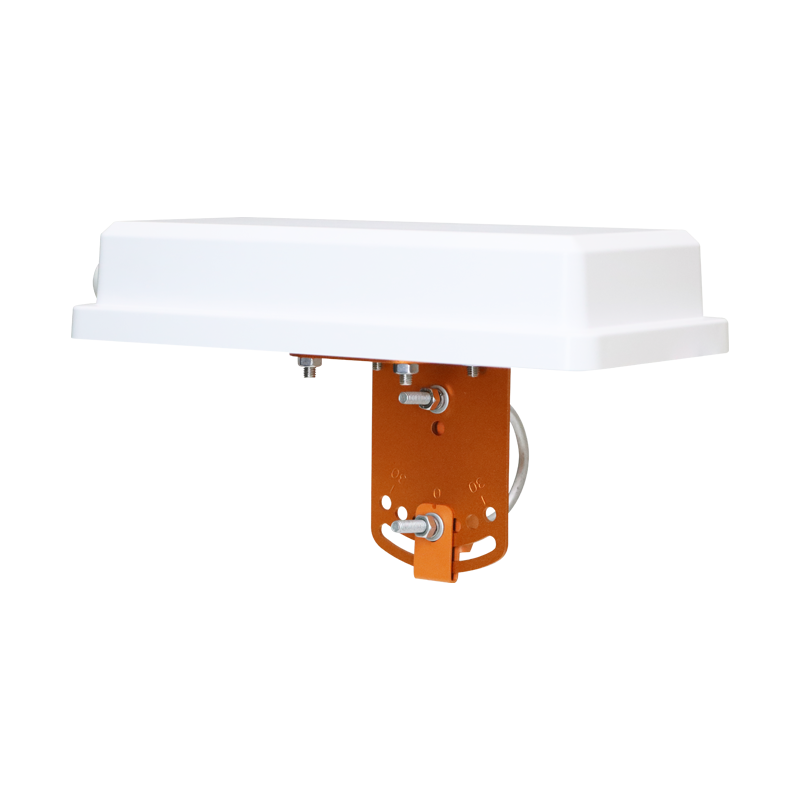

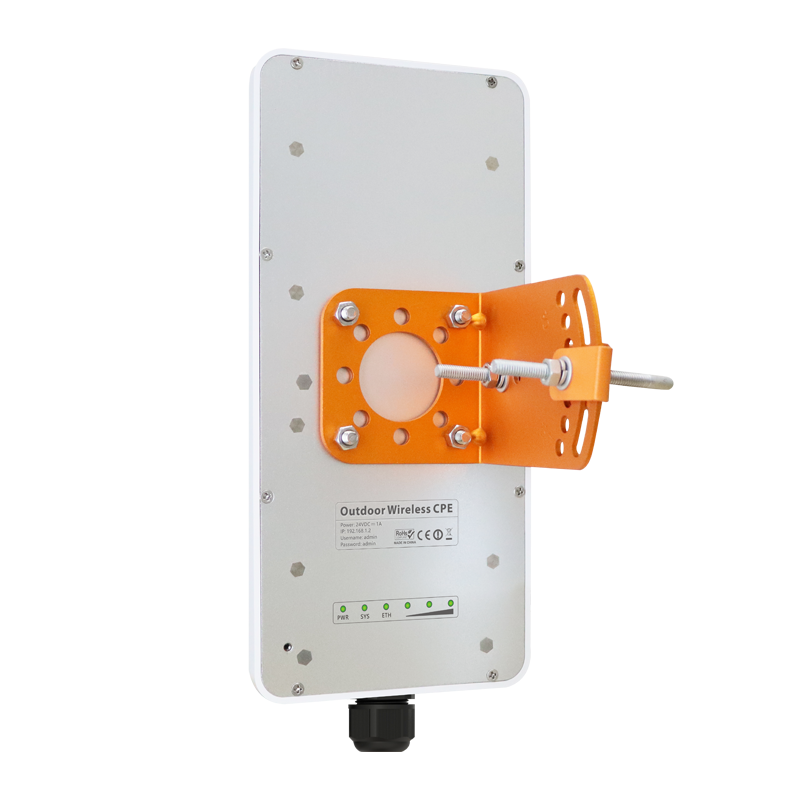

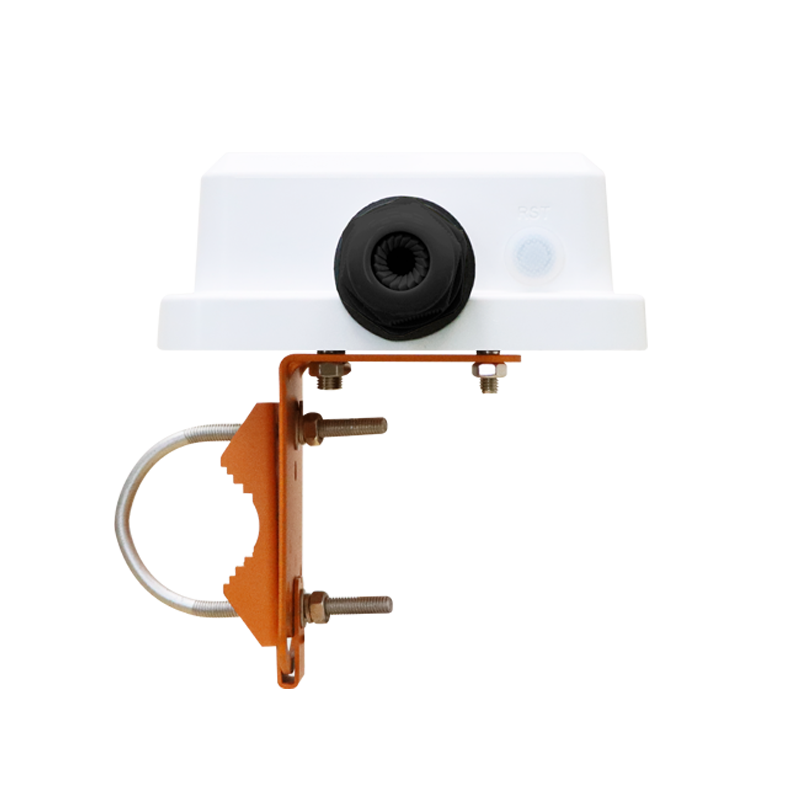

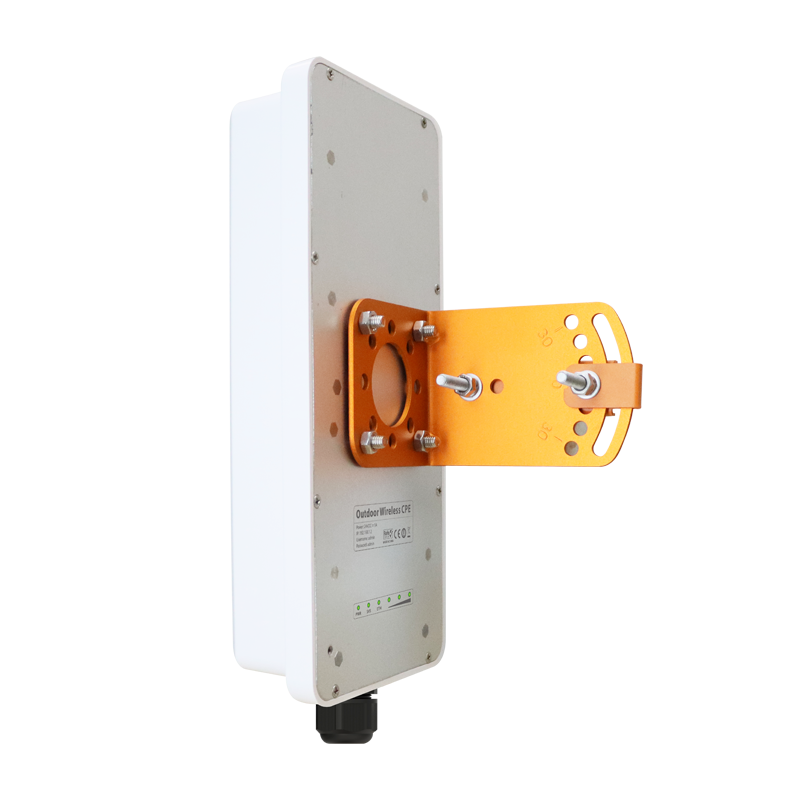

The equipment is equipped with an L-shaped bracket with adjustable Angle, which is fixed on the holding
pole through the U rod, which can easily adjust the Angle, facilitate the climbing operation and improve the construction efficiency.

Manageability
You can install a controller or WIS gateway in the local area network, and let the device connect to the
internet, you can easily understand the device in the line square.

PTP Throughput Test Data

Channel Width	1km	2km	6km	10km	15km
20MHz	200Mbps+	150Mbps+	100Mbps+	40Mbps+	10Mbps+
* The above test data is obtained in coastal or remote areas where Wi-Fi Interference is relatively low. In actual use, it is recommended to have sufficient redundancy to ensure the actual performance.

Model	X619 (AF)
CPU	Qualcomm Dual A53 @1.0 GHz
Operating Frequency	5925-6100MHz (Spatial For Afghanistan)
Wireless Standards	Wi-Fi 6E
Channel Width	20 MHz (Spatial For Afghanistan)
Proprietary Physical Layer	2x2MU-MIMO/OFDMA based on 802.11ax underlying technology
Networking interface	1*Gigabit
Transmit Power Range	Max 29dBm @20MHz
Antenna Frequency Range	5.925-6.1GHz
Antenna Gain	19dBi Dual Linear
Antenna Beam width	E:45°/ H:16° E:45°/ H:16°
LEDs	1Power, 1SYS, 1LAN, 3Wi-Fi
Power Supply	PoE 22-56V
Power Consumption	<15W
Surge suppression	8KV
Weatherproof Enclosure	IP67
Size	30712765mm
Weight	0.8kg
Temperature	-30°C to 55°C
Working mode	AP WDS、 Client WDS
Network Mode	Bridge/Router
Firewall	Port Forwarding ,DMZ,ACL Filtering
Wireless Security	WPA-PSK,WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE,WPA3-SAE
VLAN	802.1Q with 802.1p priority
DHCP	DHCP Server、 DHCP Client
Network Management	HTTP/HTTPS, SNMPv1/2, SNMPv3, TR069
QoS (Quality of Service)	Three-level priority (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, broadcast, multicast, and station priority
ARQ	yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel	MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain)	MCS 0 = -95 dBm to MCS 11 (1024 QAM-5/6) = -64 dBm (per chain)
Modulation Levels (Adaptive)	MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)	MCS 0 (BPSK) to MCS 11(1024 QAM-5/6)

LibreNMS is an open-source network monitoring tool that can monitor a wide range of network devices and also different operating systems such as Linux, Windows as well and pretty much anything that supports SNMP polling.

The top features of LibreNMS monitoring tool:

Automatic Discovery – It will automatically discover your entire network using CDP, FDP, LLDP, OSPF, BGP, SNMP, and ARP.
Customizable Alerting – Supports a customizable alerting system to send notifications through email, IRC, slack, and more.
Customizable Dashboards – It has a mobile-friendly Web UI, with customizable dashboards.
Integration Support – Supports integration with NfSen, collected, SmokePing, RANCID, and Oxidized.
Multiple Authentication Methods – Supports multiple authentication methods such as MySQL, HTTP, LDAP, Radius, and Active Directory.
Billing system – Easily generate bandwidth bills for ports on your network based on usage or transfer.
API Access – Supports an API for managing, graphing, and retrieving data from your system.
Automatic Updates – With LibreNMS you get to stay up to date automatically with new features and bug fixes.
